Attributes
| Part Number | 9328-10-10-10-FG |
|---|---|
| Is Series Page | 0 |
Description

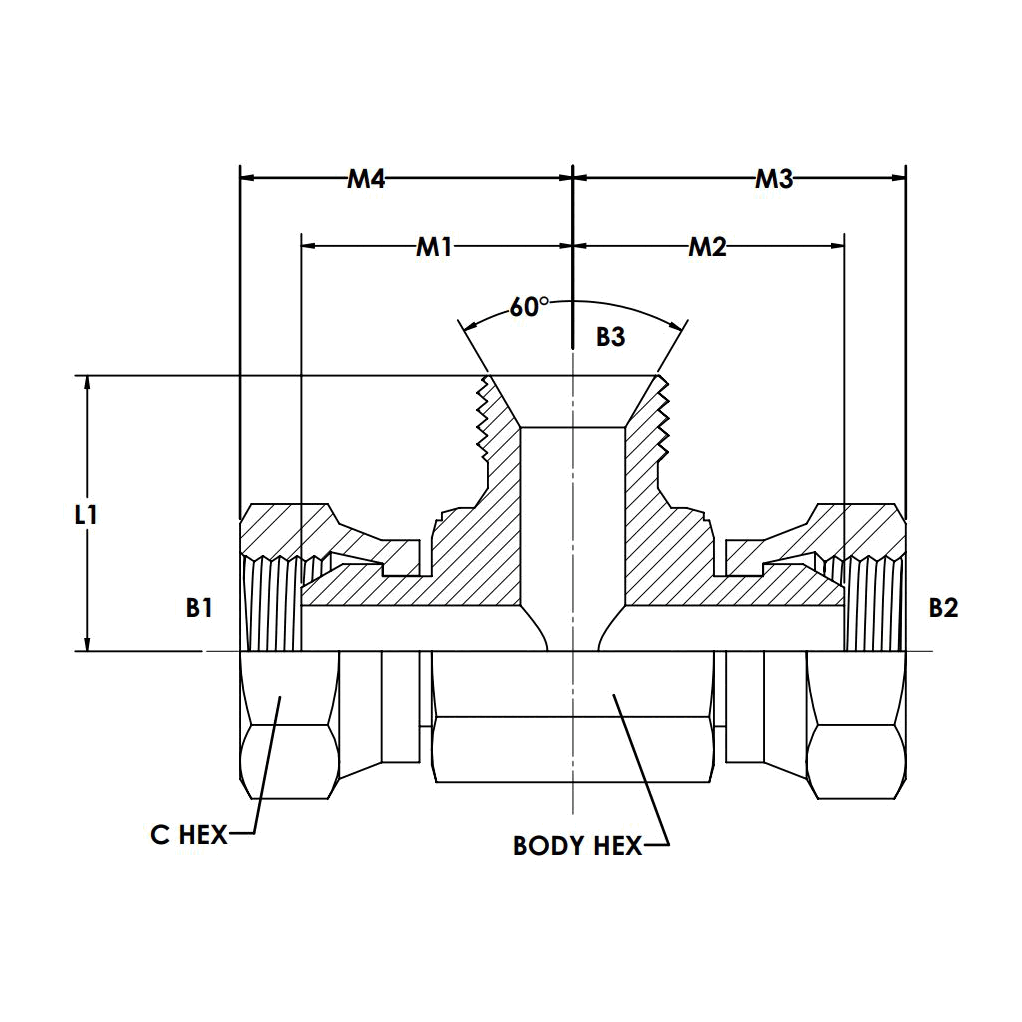

Steel, ISO 8434-6 60° Cone Female BSPP Swivel Adapter Branch Tee, 5/8-14 Female BSPP Swivel x 5/8-14 Female BSPP Swivel x 5/8-14 Male BSPP 60°
Specifications
| Connection Details | {"Side 1 Connection Type":"Female BSPP Swivel","Side 1 Thread Type":"G - 5/8-14","Side 1 Standard":"ISO 8434-6","Side 1 Role":"Line Connection","Side 2 Connection Type":"Female BSPP Swivel","Side 2 Thread Type":"G - 5/8-14","Side 2 Standard":"ISO 8434-6","Side 2 Role":"Line Connection","Side 3 Connection Type":"Male BSPP 60° Line Only","Side 3 Thread Type":"G - 5/8-14","Side 3 Standard":"ISO 8434-6","Side 3 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Swivel Tee","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"1.063","Weight":"0.25 lb"} |
| Performance Specifications | {"Working Pressure":"2900 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"11600 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Female BSPP Swivel x Female BSPP Swivel x Male BSPP |
| Technical Series Configuration | ISO 8434-6 Female BSPP Swivel Line x Female BSPP Swivel Line x Male BSPP Line Tee |
| Side 1 Connection Type | Female BSPP Swivel |
| Side 2 Connection Type | Female BSPP Swivel |
| Shape | Tee |
| Product Type | Fittings |
