Attributes
| Part Number | 9500-P-32 |
|---|---|
| Is Series Page | 0 |
Description

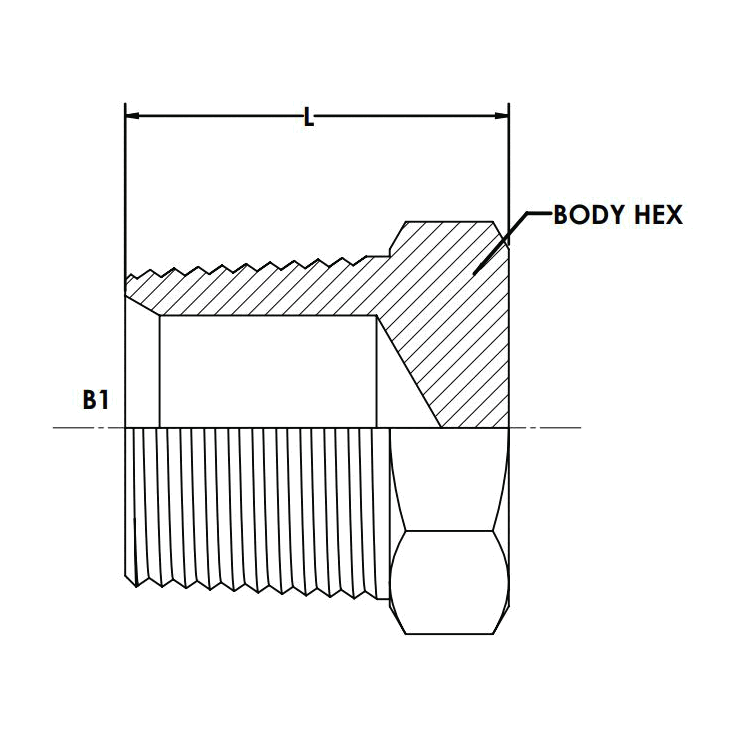

Steel, ISO 7-1 (Type R) BSPT Hex Head Plug, 2" Male BSPT
Specifications
| Connection Details | {"Connection Type":"Male BSPT","Pipe Size":"2\"","Thread Type":"R - 2-11","Standard":"ISO 7-1","Connection Standard":"ISO 7-1","Role":"Pipe Connection","Connection Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Hex Head Plug","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"2.560","Weight":"2.35 lb"} |
| Performance Specifications | {"Working Pressure":"2300 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"9200 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"2HP3MS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male BSPT Hex Head Plug |
| Technical Series Configuration | ISO 7-1 Male BSPT Pipe Hex Head Plug |
| Side 1 Connection Type | Male BSPT |
| Shape | Cap/Plug |
| Product Type | Fittings |
