Attributes
| Part Number | 5502-24-20-FG |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 Pipe 90° Street Elbow, 1-1/2" Male NPTF 30° x 1-1/4" Female NPTF
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"1-1/2\"","Side 1 Thread Type":"1-1/2-11-1/2 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"1-1/4\"","Side 2 Thread Type":"1-1/4-11-1/2 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Street Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"1.35 lb"} |
| Performance Specifications | {"Working Pressure":"1500 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"6000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2089-24-20S","Parker Hose Part Number":"2102-20-24","Parker TFD Part Number":"1 1/2 X 1 1/4 CD-S","SAE J514 Part Number":"SAE J514 20-24 140239C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Pipe x Female Pipe |
| Technical Series Configuration | SAE J476 Male NPTF x Female NPTF 90° Street Elbow |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Female NPTF |
| Shape | 90° Elbow |
| Product Type | Fittings |
PDF Documents

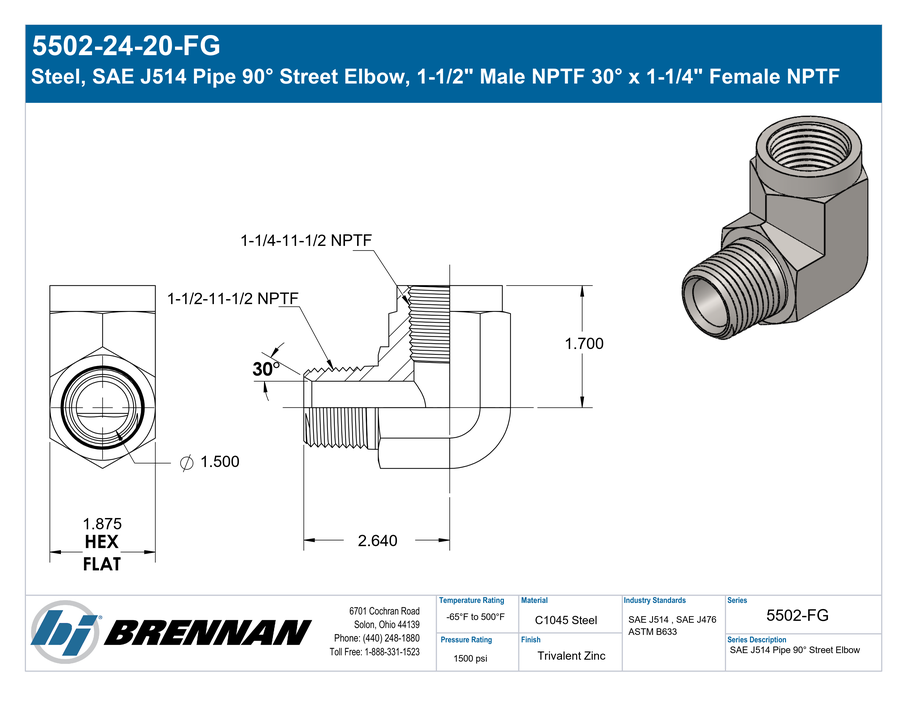

Specification Sheet
