Attributes
| Part Number | 5500-12-12-B |
|---|---|
| Is Series Page | 0 |
Description

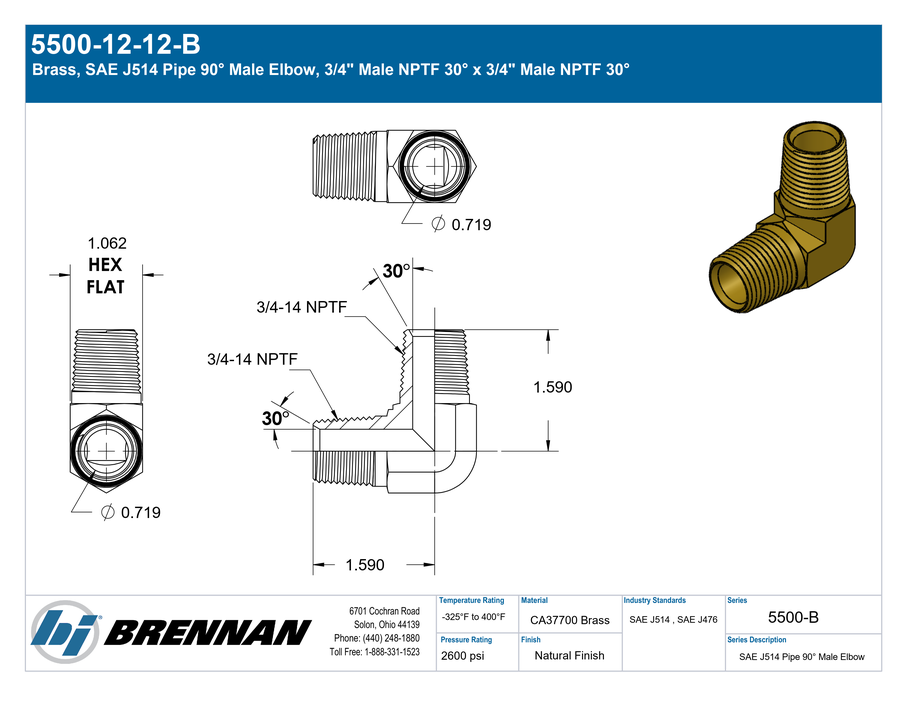

Brass, SAE J514 Pipe 90° Male Elbow, 3/4" Male NPTF 30° x 3/4" Male NPTF 30°
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"3/4\"","Side 1 Thread Type":"3/4-14 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"3/4\"","Side 2 Thread Type":"3/4-14 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Male Elbow","Primary Material":"Brass","Material Grade":"CA377","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Weight":"0.44 lb"} |
| Performance Specifications | {"Working Pressure":"2600 psi","Temperature Range":"-325°F to 400°F","Burst Pressure":"10400 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2085-12-12B","Parker Hose Part Number":"2101-12-12-B","Parker TFD Part Number":"3/4 CR-B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male Pipe x Male Pipe |
| Technical Series Configuration | SAE J476 Male NPTF x Male NPTF 90° Elbow |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Male NPTF 30° |
| Shape | 90° Elbow |
| Product Type | Fittings |
