Attributes
| Part Number | 7023-16-12 |
|---|---|
| Is Series Page | 0 |
Description

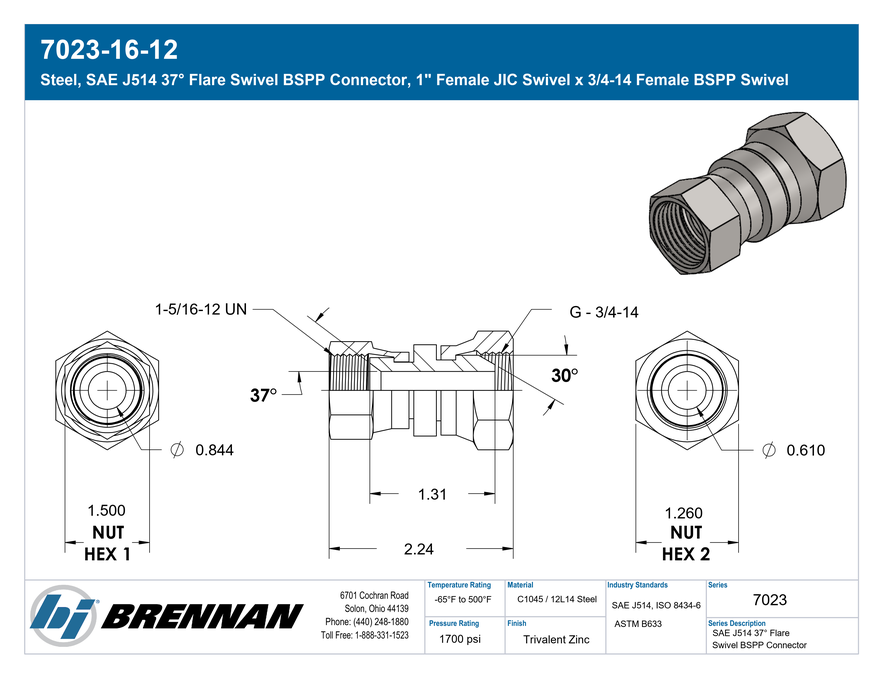

Steel, SAE J514 37° Flare Swivel BSPP Connector, 1" Female JIC Swivel x 3/4-14 Female BSPP Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Female JIC Swivel","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514 - Class 2B Thread","Side 1 Role":"Line Connection","Side 2 Connection Type":"Female BSPP Swivel","Side 2 Thread Type":"G - 3/4-14","Side 2 Standard":"ISO 8434-6","Side 2 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.48 lb"} |
| Performance Specifications | {"Working Pressure":"1700 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"6800 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Female JIC Swivel x Female BSPP Swivel |
| Technical Series Configuration | SAE J514 Female JIC Swivel Tube x ISO 8434-6 Female BSPP Swivel Line Connector |
| Side 1 Connection Type | Female JIC Swivel |
| Side 2 Connection Type | Female BSPP Swivel |
| Shape | Straight |
| Product Type | Fittings |
