Attributes
| Part Number | 9722-24-24-LN |
|---|---|
| Is Series Page | 0 |
Description

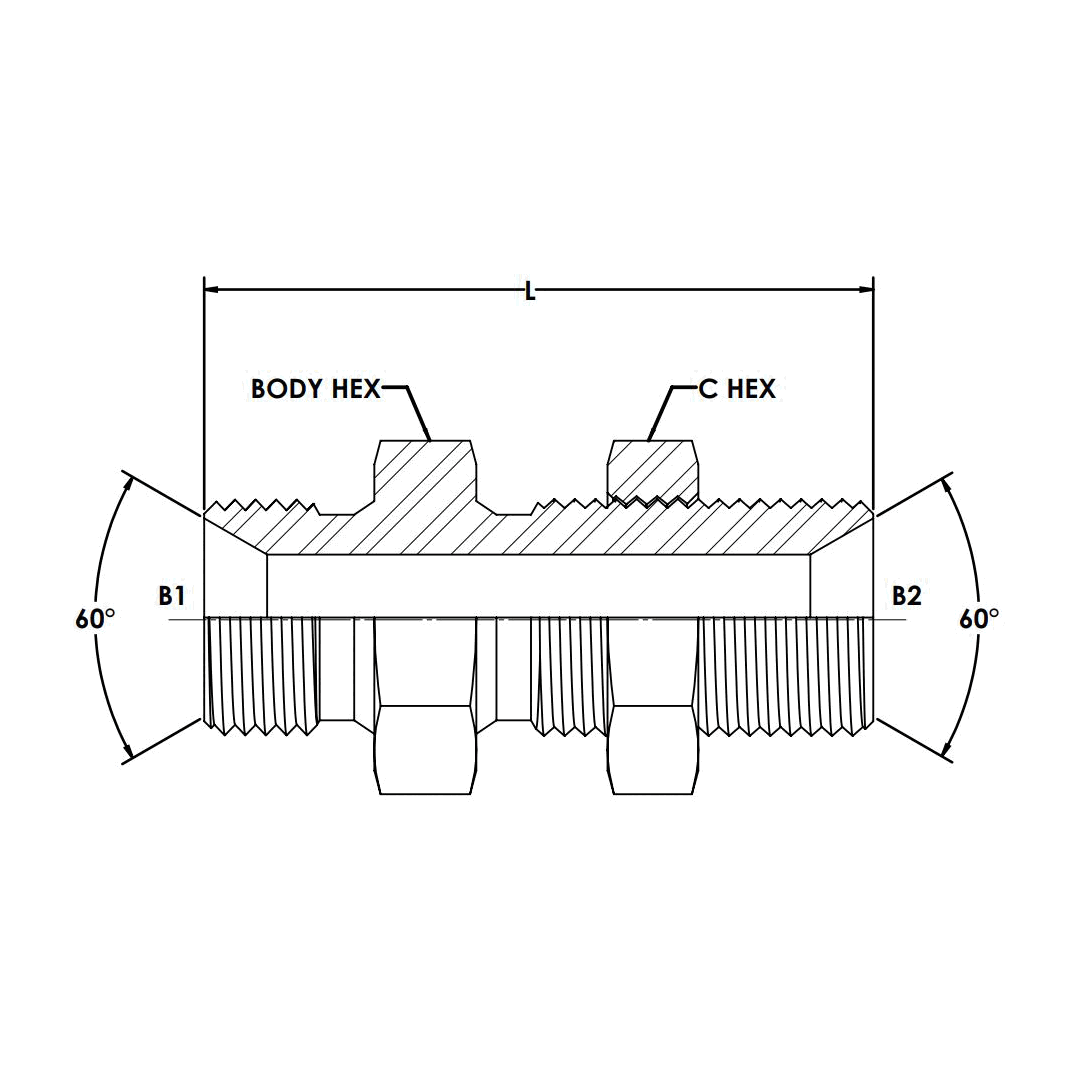

Steel, ISO 8434-6 60° Cone BSPP Bulkhead With Lock Nut, 1-1/2-11 Male BSPP 60° x 1-1/2-11 Male BSPP 60°
Specifications
| Connection Details | {"Side 1 Connection Type":"Male BSPP 60° Line Only","Side 1 Thread Type":"G - 1-1/2-11","Side 1 Standard":"ISO 8434-6","Side 1 Role":"Line Connection","Side 2 Connection Type":"Male BSPP 60° Line Only","Side 2 Thread Type":"G - 1-1/2-11","Side 2 Standard":"ISO 8434-6","Side 2 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Bulkhead","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Feature":"Bulkhead"} |
| Dimensions | {"Hex/Wrench":"2.165","Weight":"1.55 lb"} |
| Performance Specifications | {"Working Pressure":"1500 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"6000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"24WMK4WL4NMS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male BSPP x Male BSPP Bulkhead, With Lock Nut |
| Technical Series Configuration | ISO 8434-6 Male BSPP Line x Male BSPP Bulkhead Line With Lock Nut |
| Side 1 Connection Type | Male BSPP 60° Line Only |
| Side 2 Connection Type | Male BSPP 60° Line Only |
| Shape | Straight |
| Product Type | Fittings |
