Attributes
| Part Number | FS2406-24-20 |
|---|---|
| Is Series Page | 0 |
Description

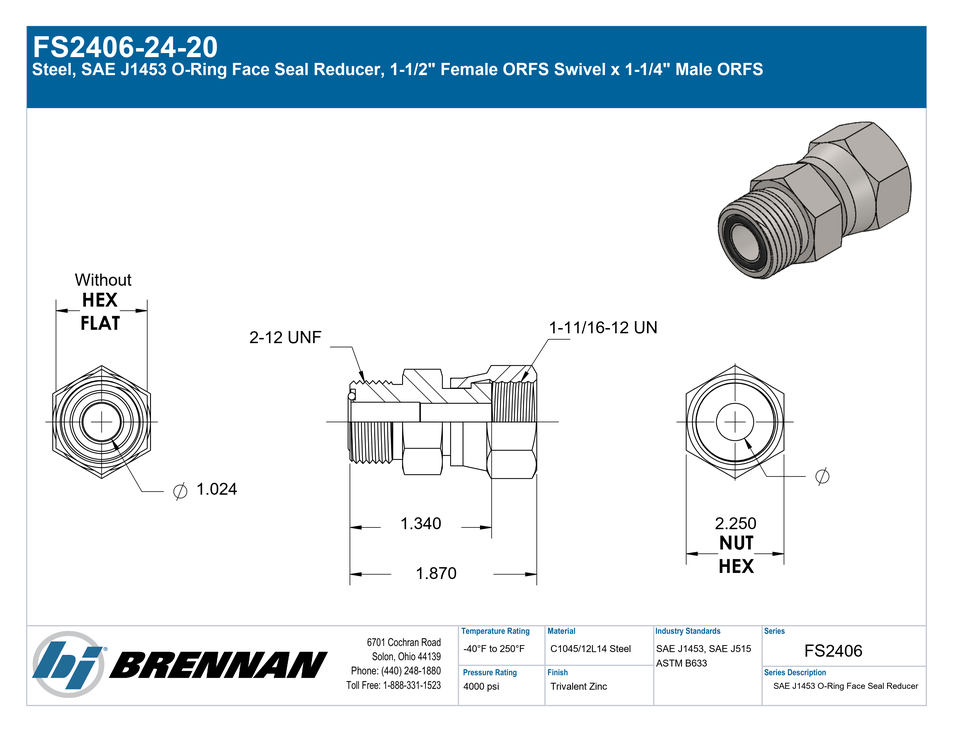

Steel, SAE J1453 O-Ring Face Seal Reducer, 1-1/2" Female ORFS Swivel x 1-1/4" Male ORFS
Specifications
| Connection Details | {"Side 1 Connection Type":"Female ORFS Swivel","Side 1 Tube OD":"1-1/2\"","Side 1 Thread Type":"2-12 UNF","Side 1 Standard":"SAE J1453","Side 1 Role":"Line Connection","Side 2 Connection Type":"Male ORFS","Side 2 Tube OD":"1-1/4\"","Side 2 Thread Type":"1-11/16-12 UN","Side 2 Standard":"SAE J1453 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 2 Replacement Seal":"FS4000-20"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Reducer","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"1.00 lb"} |
| Performance Specifications | {"Working Pressure":"4000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"16000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"FF2281T2024S","Parker TFD Part Number":"24-20 TRLON-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Female ORFS x Male ORFS |
| Technical Series Configuration | SAE J1453 Female ORFS Tube x Male ORFS Tube Reducer |
| Side 1 Connection Type | Female ORFS Swivel |
| Side 2 Connection Type | Male ORFS |
| Shape | Straight |
| Product Type | Fittings |
