Attributes
| Part Number | 6564-08-08-04 |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 37° Flare Swivel Adapter ORB Diagnostic Port, 1/2" Male JIC x 1/2" Female JIC Swivel x 1/4" FORB Diagnostic Port
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female JIC Swivel","Side 2 Tube OD":"1/2\"","Side 2 Thread Type":"3/4-16 UNF","Side 2 Standard":"SAE J514 - Class 2B Thread","Side 2 Role":"Line Connection","Side 3 Connection Type":"Female ORB","Side 3 Thread Type":"7/16-20 UNF","Side 3 Standard":"SAE J1926","Side 3 Role":"Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Diagnostic Tee","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.26 lb"} |
| Performance Specifications | {"Working Pressure":"5000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"20000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"8-4 XHX6G5TP-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Female JIC Swivel x Female ORB |
| Technical Series Configuration | SAE J514 Male JIC Tube x Female JIC Swivel Tube x SAE J1926-1 Female O-Ring Boss Port Diagnostic Tee |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Female JIC Swivel |
| Shape | Tee |
| Product Type | Fittings |
PDF Documents

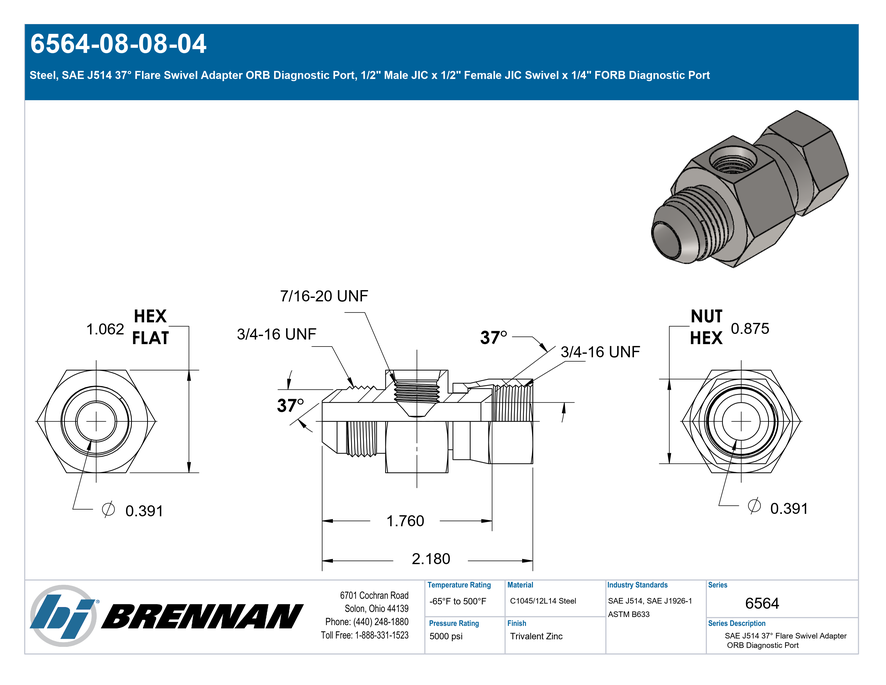

Specification Sheet
Open PDF
