Attributes
| Part Number | C6502-08-08-SS |
|---|---|
| Is Series Page | 0 |
Description

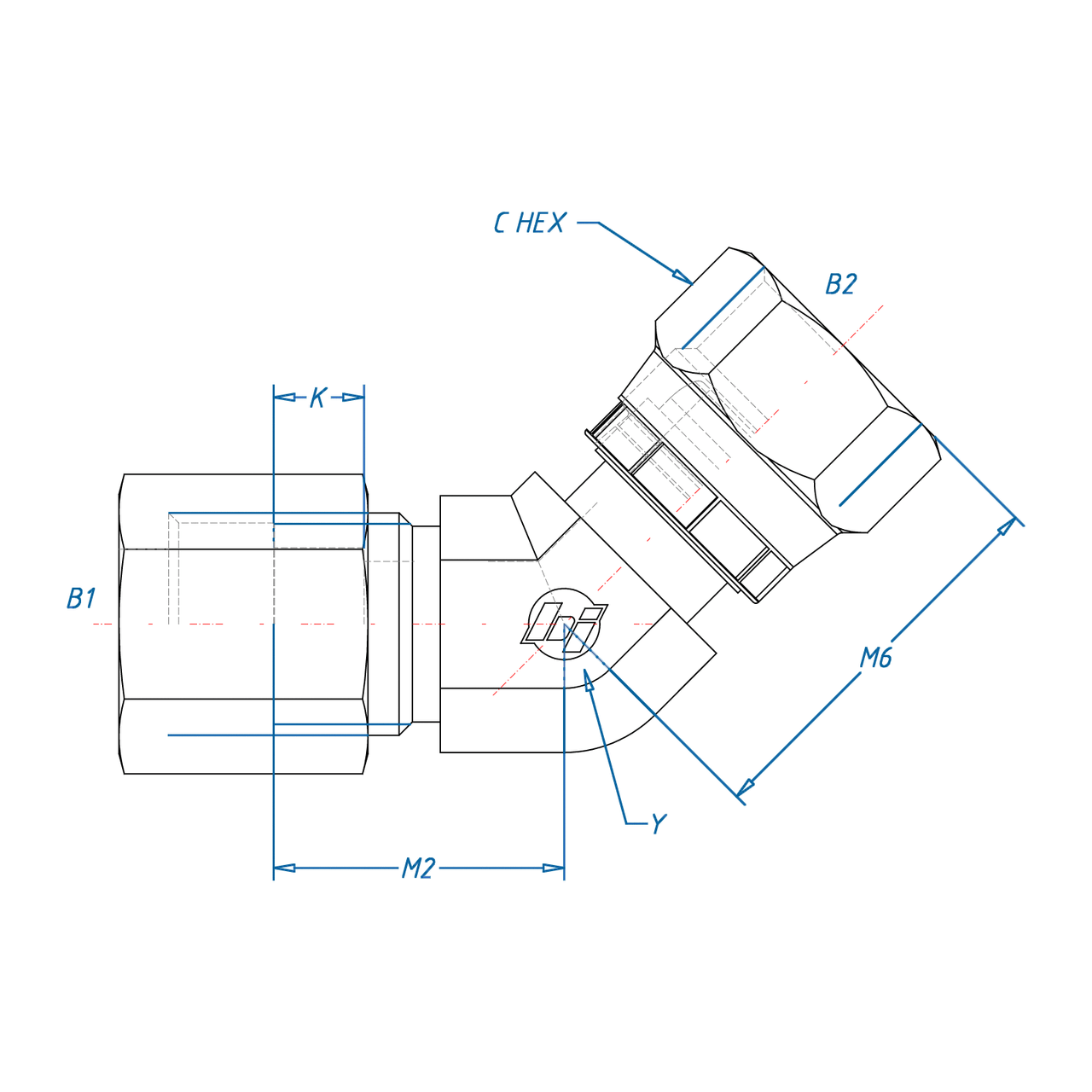

Stainless Steel, SAE J514 Flareless Tube 45° Swivel Elbow, 1/2" Flareless Bite Type x 1/2" Flareless Bite Type Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Flareless Bite Type","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514","Side 1 Role":"Tube Connection","Side 2 Connection Type":"Flareless Bite Type Swivel","Side 2 Tube OD":"1/2\"","Side 2 Thread Type":"3/4-16 UNF","Side 2 Standard":"SAE J514","Side 2 Role":"Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"45° Elbow","Shape Type":"Swivel Elbow","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.38 lb"} |
| Performance Specifications | {"Working Pressure":"5000 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"20000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"8 V6BU-SS","SAE J514 Part Number":"SAE J514 8-8 08A0321S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Flareless Compression x Flareless Compression Swivel |
| Technical Series Configuration | SAE J514 Flareless Compression Tube x Flareless Compression Swivel Tube 45° Elbow |
| Side 1 Connection Type | Flareless Bite Type |
| Side 2 Connection Type | Flareless Bite Type Swivel |
| Shape | 45° Elbow |
| Product Type | Fittings |
