Attributes
| Part Number | 6574-12-12-04 |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 37° Flare Swivel Adapter NPT Diagnostic Port, 3/4" Male JIC x 3/4" Female JIC Swivel x 1/4" FNPT Diagnostic Port
Specifications
| Series Configuration | Male JIC x Female JIC Swivel x Female Pipe |
|---|---|
| Technical Series Configuration | SAE J514 Male JIC x Female JIC Swivel Tube x SAE J476 Female NPTF Diagnostic Tee |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Female JIC Swivel |
| Shape | Tee |
| Product Type | Fittings |
PDF Documents

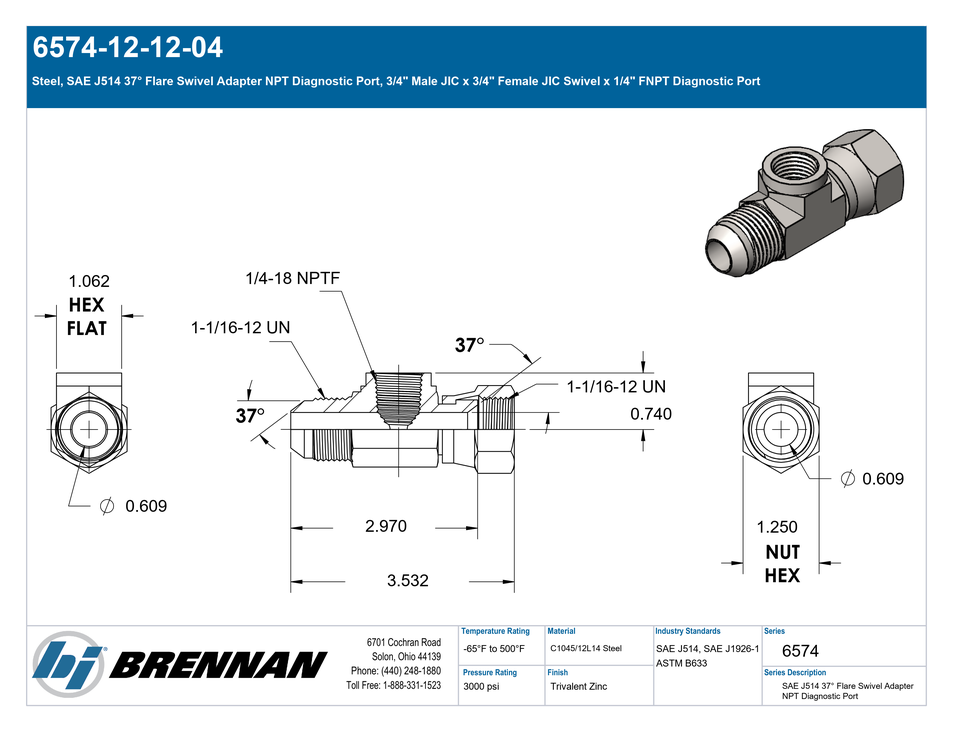

Specification Sheet
Open PDF
