Attributes
| Part Number | 1502-12-12-FG |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 NPSM Swivel 90° Female Elbow, 3/4" Female NPTF x 3/4" Female NPSM Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Female NPTF","Side 1 Pipe Size":"3/4\"","Side 1 Thread Type":"3/4-14 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Female NPSM Swivel","Side 2 Pipe Size":"3/4\"","Side 2 Thread Type":"3/4-14 NPSM","Side 2 Standard":"SAE J514","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Female Swivel Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.73 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2048-12-12S","Parker Hose Part Number":"2207-12-12","Parker TFD Part Number":"2207-12-12","SAE J514 Part Number":"SAE J514 12-12 140231C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Female Pipe x Female Pipe Swivel |
| Technical Series Configuration | SAE J476 Female NPTF x Female NPSM Swivel 90° Elbow |
| Side 1 Connection Type | Female NPTF |
| Side 2 Connection Type | Female NPSM Swivel |
| Shape | 90° Elbow |
| Product Type | Fittings |
PDF Documents

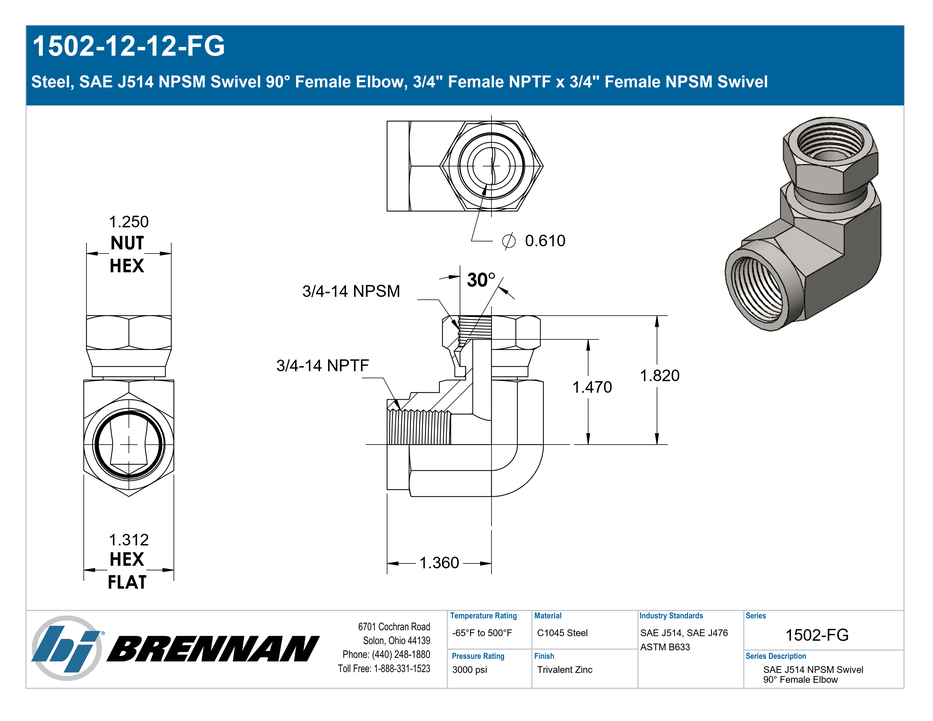

Specification Sheet
Open PDF
