Attributes
| Part Number | 8088-08-08 |
|---|---|
| Is Series Page | 0 |
Description

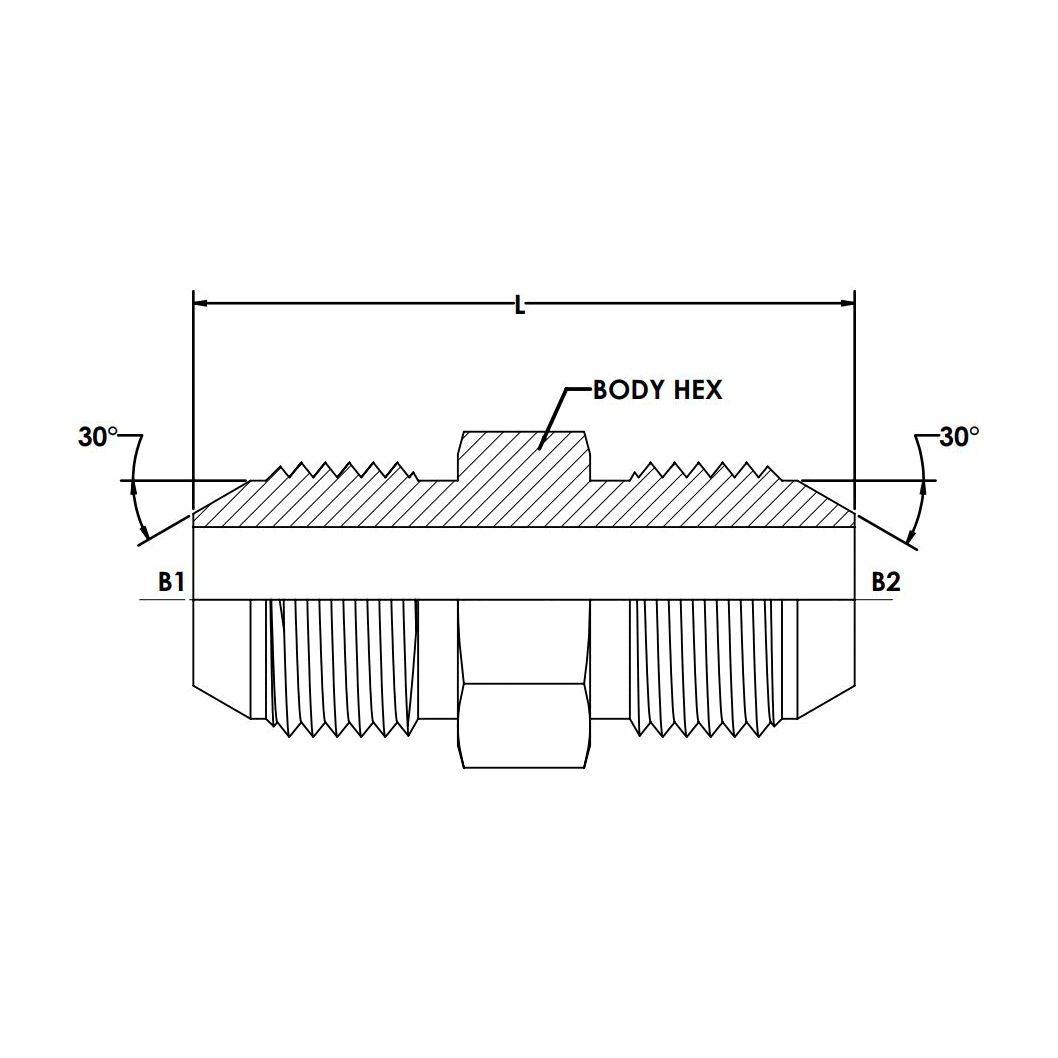

Steel, JIS B0202 Flare Union, 1/2" Male JIS x 1/2" Male JIS
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIS","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"G - 1/2-14","Side 1 Standard":"JIS B 0202","Side 1 Role":"Line Connection","Side 2 Connection Type":"Male JIS","Side 2 Tube OD":"1/2\"","Side 2 Thread Type":"G - 1/2-14","Side 2 Standard":"JIS B 0202","Side 2 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"0.866","Weight":"0.08 lb"} |
| Performance Specifications | {"Working Pressure":"5000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"20000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"8 HT4-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIS x Male JIS |
| Technical Series Configuration | JIS B 0202 Male JIS Tube x Male JIS Tube Union Flare |
| Side 1 Connection Type | Male JIS |
| Side 2 Connection Type | Male JIS |
| Shape | Straight |
| Product Type | Fittings |
