Attributes
| Part Number | 6902-20-20-NWO-SS |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J514 NPSM Swivel 45° Adjustable Port Elbow, 1-5/8-12 Male Adjustable ORB x 1-1/4" Female NPSM Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Male Adjustable ORB","Side 1 Thread Type":"1-5/8-12 UN","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-20","Side 2 Connection Type":"Female NPSM Swivel","Side 2 Pipe Size":"1-1/4\"","Side 2 Thread Type":"1-1/4-11-1/2 NPSM","Side 2 Standard":"SAE J514","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"45° Elbow","Shape Type":"Adjustable Swivel Elbow","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"1.41 lb"} |
| Performance Specifications | {"Working Pressure":"2000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Burst Pressure":"8000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-2067-20-20","Parker TFD Part Number":"3507-20-20-SS","SAE J514 Part Number":"SAE J514 20-20 140357SN"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Adjustable ORB x Female Pipe Swivel |
| Technical Series Configuration | SAE J1926-3 Male Adjustable O-Ring Boss x SAE J476 Female NPSM Swivel 45° Elbow |
| Side 1 Connection Type | Male Adjustable ORB |
| Side 2 Connection Type | Female NPSM Swivel |
| Shape | 45° Elbow |
| Product Type | Fittings |
PDF Documents

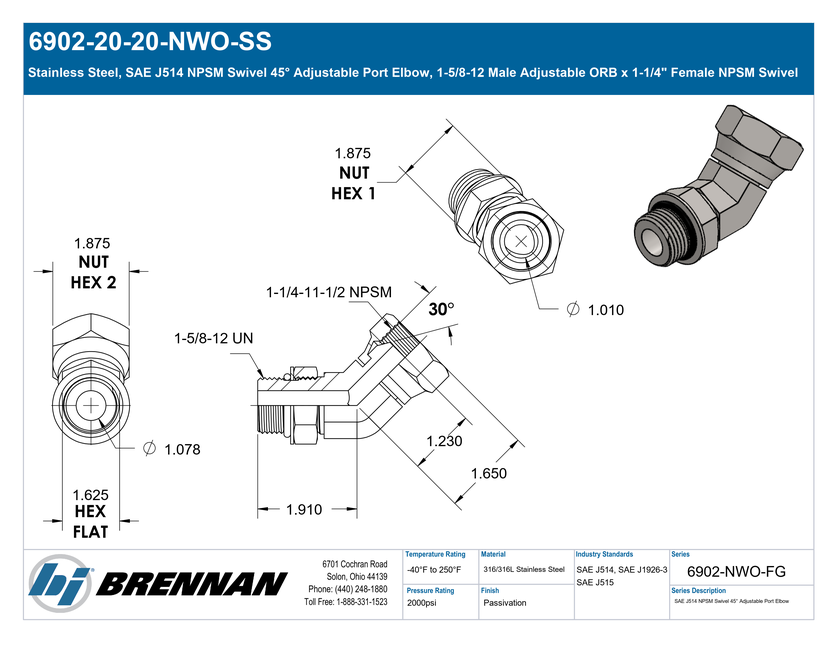

Specification Sheet
