Attributes
| Part Number | 2408-12-B |
|---|---|
| Is Series Page | 0 |
Description

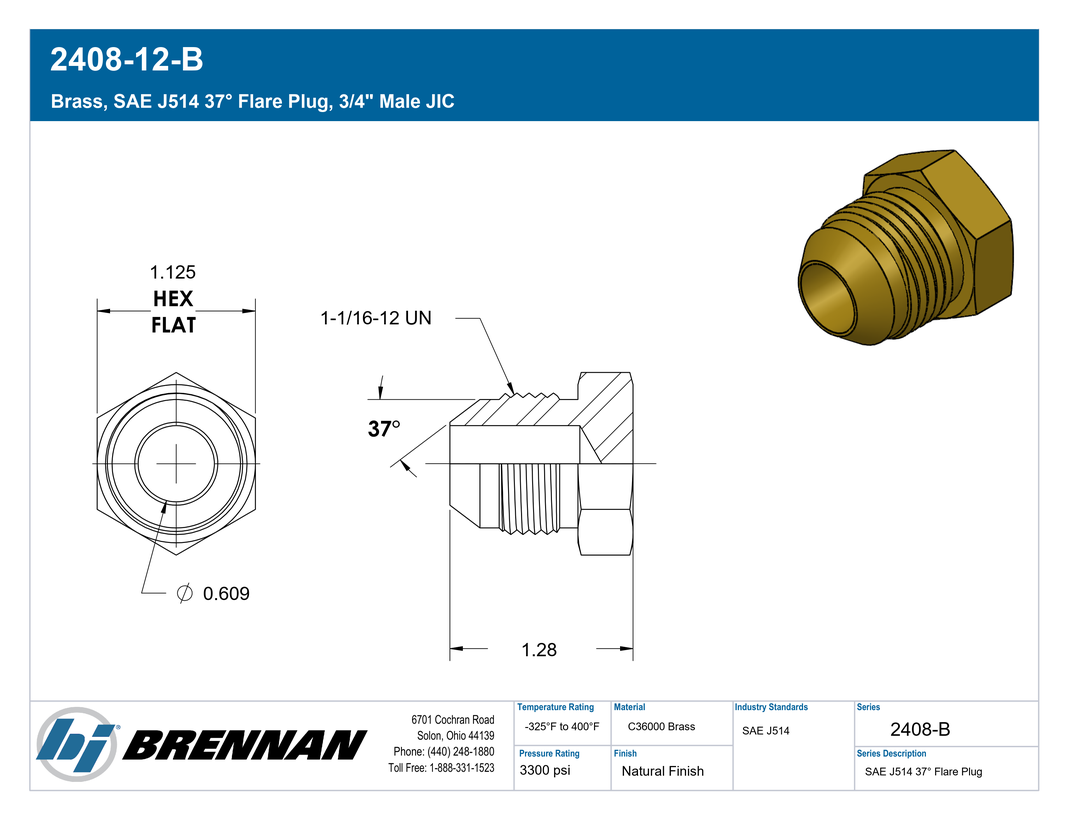

Brass, SAE J514 37° Flare Plug, 3/4" Male JIC
Specifications
| Connection Details | {"Connection Type":"Male JIC","Tube OD":"3/4\"","Thread Type":"1-1/16-12 UN","Standard":"SAE J514 - Class 2A Thread","Connection Standard":"SAE J514 - Class 2A Thread","Role":"Line/Tube Connection","Connection Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Brass","Material Grade":"C36000","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Weight":"0.24 lb"} |
| Performance Specifications | {"Working Pressure":"3300 psi","Temperature Range":"-325°F to 400°F","Burst Pressure":"13200 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"900599-12B","Parker Hose Part Number":"03CP-12-B","Parker TFD Part Number":"12 PNTX-B","SAE J514 Part Number":"SAE J514 12 070109B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC Plug |
| Technical Series Configuration | SAE J514 Male JIC Tube Plug |
| Side 1 Connection Type | Male JIC |
| Shape | Cap/Plug |
| Product Type | Fittings |
