Attributes
| Part Number | D7404-L08-06-X |
|---|---|
| Is Series Page | 0 |
Description

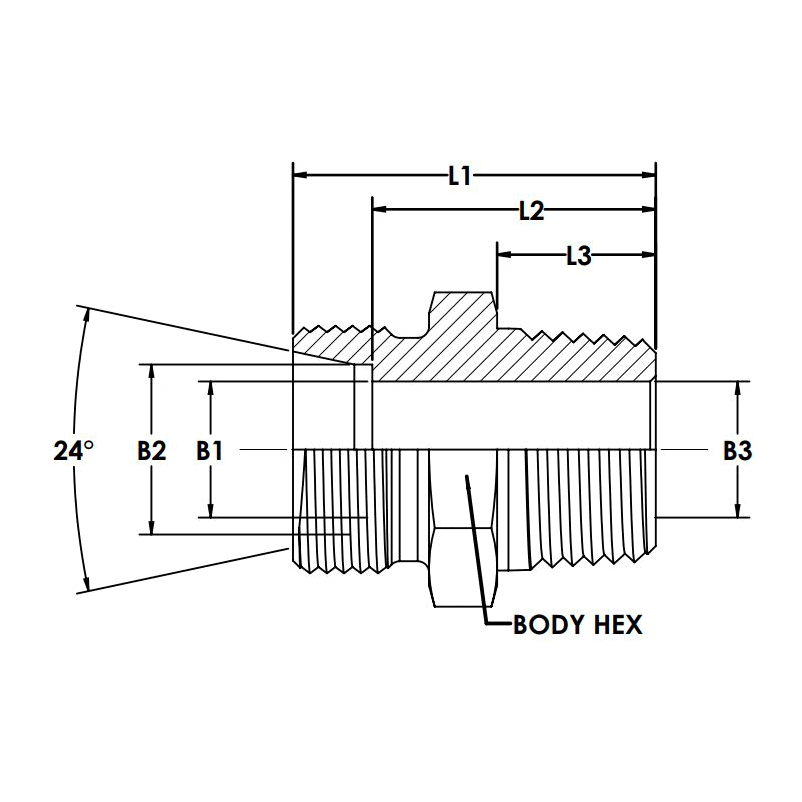

Steel, DIN 2353 Male Connector, Light 8mm Male DIN x 3/8" BSPT, Body Only
Specifications
| Connection Details | {"Side 1 Connection Type":"Male DIN","Side 1 Tube OD":"8mm","Side 1 Thread Type":"M14X1.5","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Line/Tube Connection","Side 1 DIN Pressure Series":"Light","Side 2 Connection Type":"Male BSPT","Side 2 Pipe Size":"3/8\"","Side 2 Thread Type":"R - 3/8-19","Side 2 Standard":"ISO 7-1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"11SMnPb30","Plating":"Zinc Nickel"} |
| Dimensions | {"Hex/Wrench":"19mm","Weight":"0.08 lb"} |
| Performance Specifications | {"Working Pressure":"4569 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"1,000 hrs no red rust per DIN ISO 9227","Burst Pressure":"18276 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"GE08LR3/8KEGCFX"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male DIN x Male BSPT, Body Only |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x DIN 3852-2 Form C Male BSPT Connector, Body Only |
| Side 1 Connection Type | Male DIN |
| Side 2 Connection Type | Male BSPT |
| Shape | Straight |
| Product Type | Fittings |
