Attributes
| Part Number | 2112-05-06-B |
|---|---|
| Is Series Page | 0 |
Description

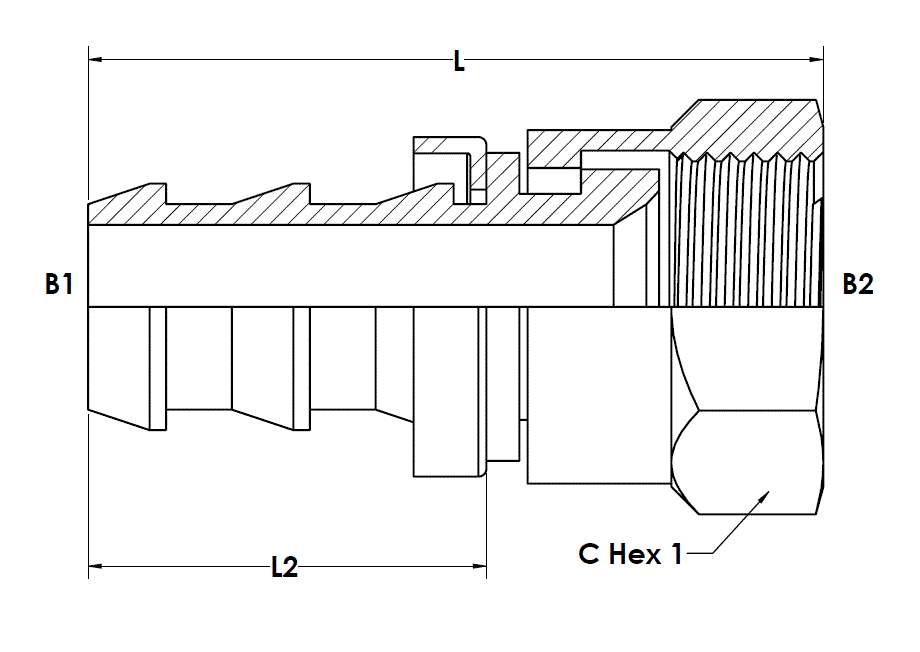

05PL-06FSAES Straight Brass
Specifications
| Body & Materials | {"Shape":"Straight","Shape Type":"Swivel Connector","Primary Material":"Brass","Material Grade":"C36000","Surface Treatment":"Natural Finish","Seal Code":"LDPE"} |
|---|---|
| Dimensions | {"Weight":"0.08 lb"} |
| Performance Specifications | {"Working Pressure":"150 psi","Temperature Range":"-50°F to 185°F","Temperature Notes":"Temperature limited by LDPE Washer"} |
| Cross References | {"Parker Hose Part Number":"30882-6-5B","Parker TFD Part Number":"30882-6-5B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Push-Lok Hose Barb x Female SAE Swivel |
| Technical Series Configuration | Push-Lok Hose Barb x SAE J514 Female SAE Swivel Connector |
| Shape | Straight |
| Product Type | Fittings |
