Attributes
| Part Number | 5602-24-24-24-SS |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J514 Pipe Male Run Tee, 1-1/2" Male NPTF 30° x 1-1/2" Female NPTF
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"1-1/2\"","Side 1 Thread Type":"1-1/2-11-1/2 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"1-1/2\"","Side 2 Thread Type":"1-1/2-11-1/2 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection","Side 3 Connection Type":"Female NPTF","Side 3 Pipe Size":"1-1/2\"","Side 3 Thread Type":"1-1/2-11-1/2 NPTF","Side 3 Standard":"SAE J476","Side 3 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Male Run Tee","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"4.18 lb"} |
| Performance Specifications | {"Working Pressure":"1500 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"6000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-2092-24-24","Parker TFD Part Number":"1 1/2 MRO-SS","SAE J514 Part Number":"SAE J514 24-24-24 140424S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Pipe x Female Pipe x Female Pipe |
| Technical Series Configuration | SAE J476 Male NPTF x Female NPTF x Female NPTF Run Tee |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Female NPTF |
| Shape | Tee |
| Product Type | Fittings |
PDF Documents

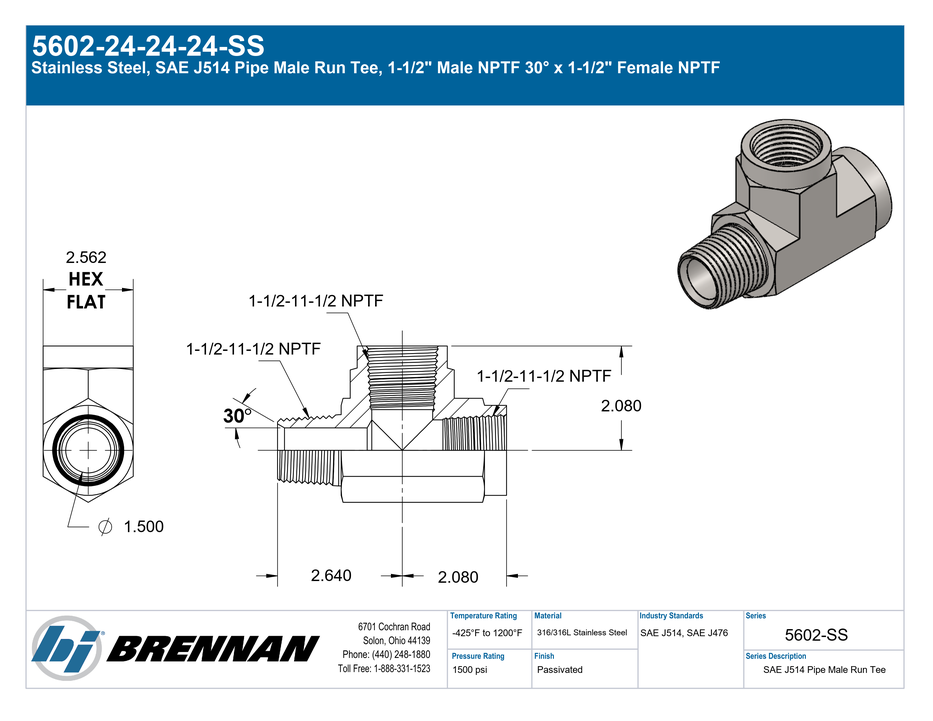

Specification Sheet
Open PDF
