Attributes
| Part Number | C6400-04-04-O-SS |
|---|---|
| Is Series Page | 0 |
Description

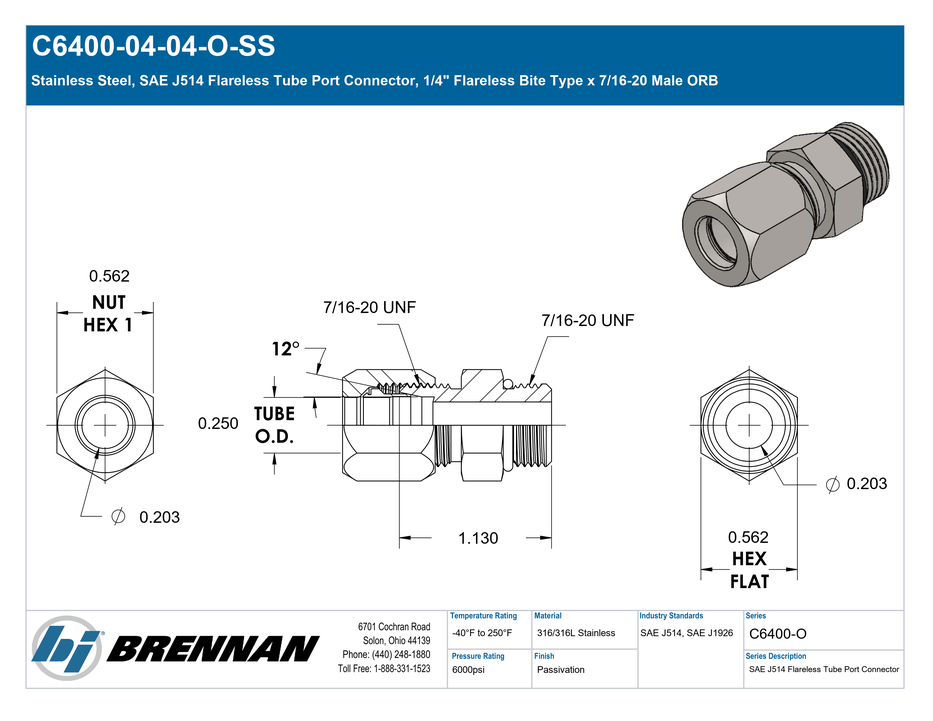

Stainless Steel, SAE J514 Flareless Tube Port Connector, 1/4" Flareless Bite Type x 7/16-20 Male ORB
Specifications
| Connection Details | {"Side 1 Connection Type":"Flareless Bite Type","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514","Side 1 Role":"Tube Connection","Side 2 Connection Type":"Male ORB","Side 2 Thread Type":"7/16-20 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-04"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.08 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"4 F5BU-SS","SAE J514 Part Number":"SAE J514 4-4 08A0120SN"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Flareless Compression x Male ORB |
| Technical Series Configuration | SAE J514 Flareless Compression Tube x SAE J1926-3 Male O-Ring Boss Port Connector |
| Side 1 Connection Type | Flareless Bite Type |
| Side 2 Connection Type | Male ORB |
| Shape | Straight |
| Product Type | Fittings |
