Attributes
| Part Number | C2403-02-02-SS |
|---|---|
| Is Series Page | 0 |
Description

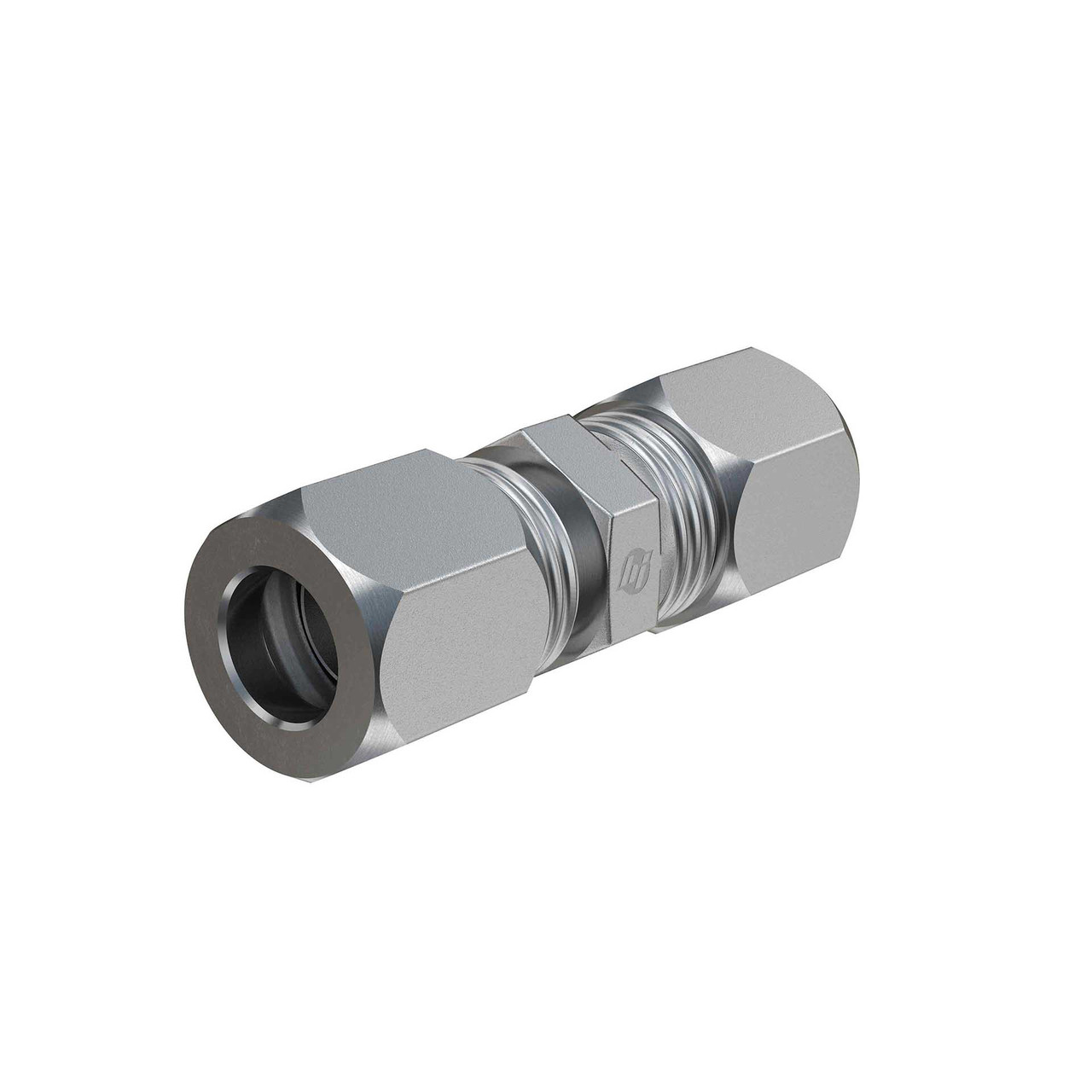

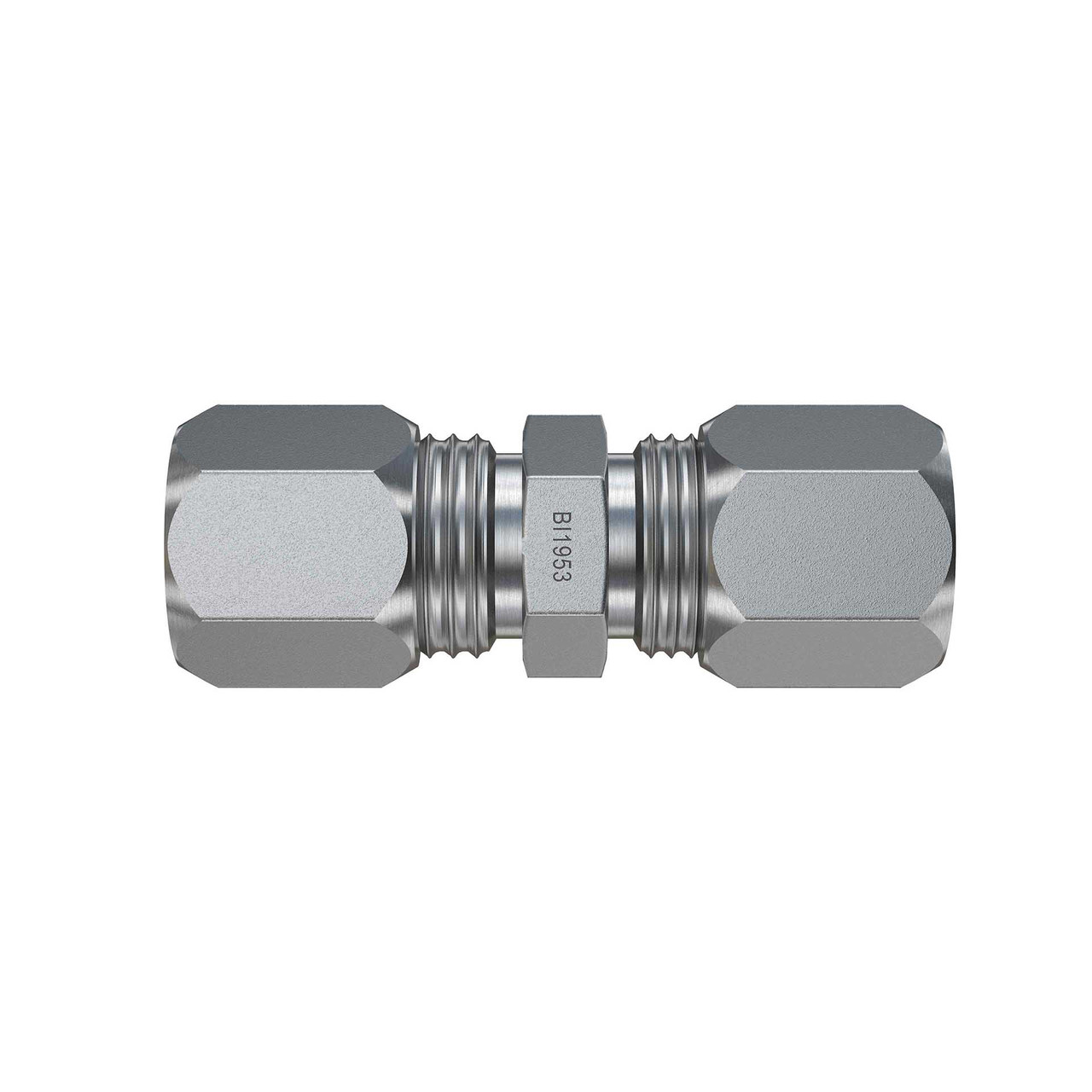

Stainless Steel, SAE J514 Flareless Tube Union, 1/8" Flareless Bite Type x 1/8" Flareless Bite Type
Specifications
| Connection Details | {"Side 1 Connection Type":"Flareless Bite Type","Side 1 Tube OD":"1/8\"","Side 1 Thread Type":"5/16-24 UNF","Side 1 Standard":"SAE J514","Side 1 Role":"Tube Connection","Side 2 Connection Type":"Flareless Bite Type","Side 2 Tube OD":"1/8\"","Side 2 Thread Type":"5/16-24 UNF","Side 2 Standard":"SAE J514","Side 2 Role":"Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Union","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.05 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"2 HBU-SS","SAE J514 Part Number":"SAE J514 2-2 08A0101S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Flareless Compression x Flareless Compression |
| Technical Series Configuration | SAE J514 Flareless Compression Tube x Flareless Compression Tube Union |
| Side 1 Connection Type | Flareless Bite Type |
| Side 2 Connection Type | Flareless Bite Type |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
