Attributes
| Part Number | FS2500-24-24-FG-VITON |
|---|---|
| Is Series Page | 0 |
Description

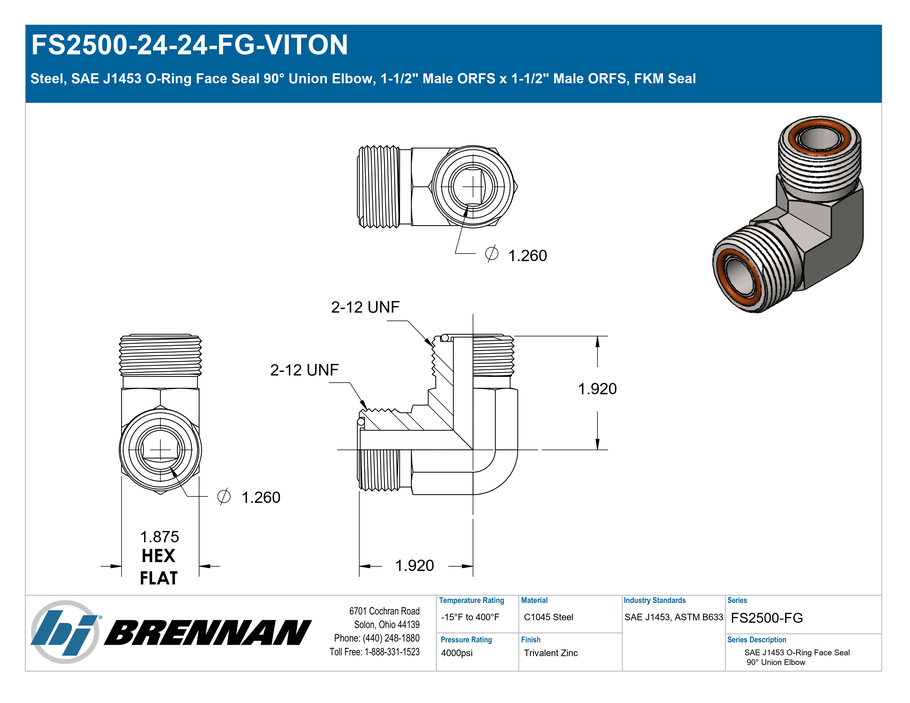

Steel, SAE J1453 O-Ring Face Seal 90° Union Elbow, 1-1/2" Male ORFS x 1-1/2" Male ORFS, FKM Seal
Specifications
| Connection Details | {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"1-1/2\"","Side 1 Thread Type":"2-12 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4001-24","Side 2 Connection Type":"Male ORFS","Side 2 Tube OD":"1-1/2\"","Side 2 Thread Type":"2-12 UNF","Side 2 Standard":"SAE J1453 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 2 Replacement Seal":"FS4001-24"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Union Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} |
| Dimensions | {"Weight":"1.88 lb"} |
| Performance Specifications | {"Working Pressure":"4000 psi","Temperature Range":"-15°F to 400°F","Temperature Notes":"Temperature limited by FKM Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"16000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"FF2035T2424-213","Parker TFD Part Number":"24 ELO-S FKM"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male ORFS x Male ORFS |
| Technical Series Configuration | SAE J1453 Male ORFS Tube x Male ORFS Tube 90° Union Elbow |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | Male ORFS |
| Shape | 90° Elbow |
| Product Type | Fittings |
