Attributes
| Part Number | 6410-40-24-O |
|---|---|
| Is Series Page | 0 |
Description

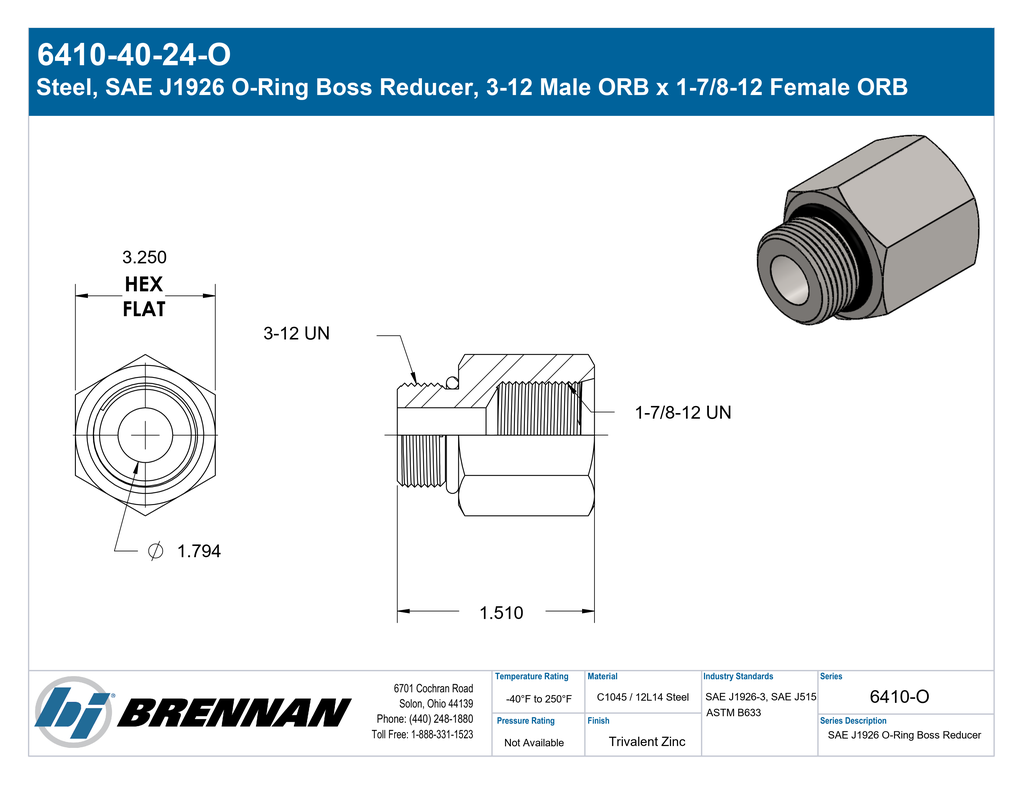

Steel, SAE J1926 O-Ring Boss Reducer, 3-12 Male ORB x 1-7/8-12 Female ORB
Specifications
| Series Configuration | Male ORB x Female ORB |
|---|---|
| Technical Series Configuration | SAE J1926-3 Male O-Ring Boss x Female O-Ring Boss Reducer |
| Side 1 Connection Type | Male ORB |
| Side 2 Connection Type | Female ORB |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
