Attributes
| Part Number | FS0318-06-SS |
|---|---|
| Is Series Page | 0 |
Description

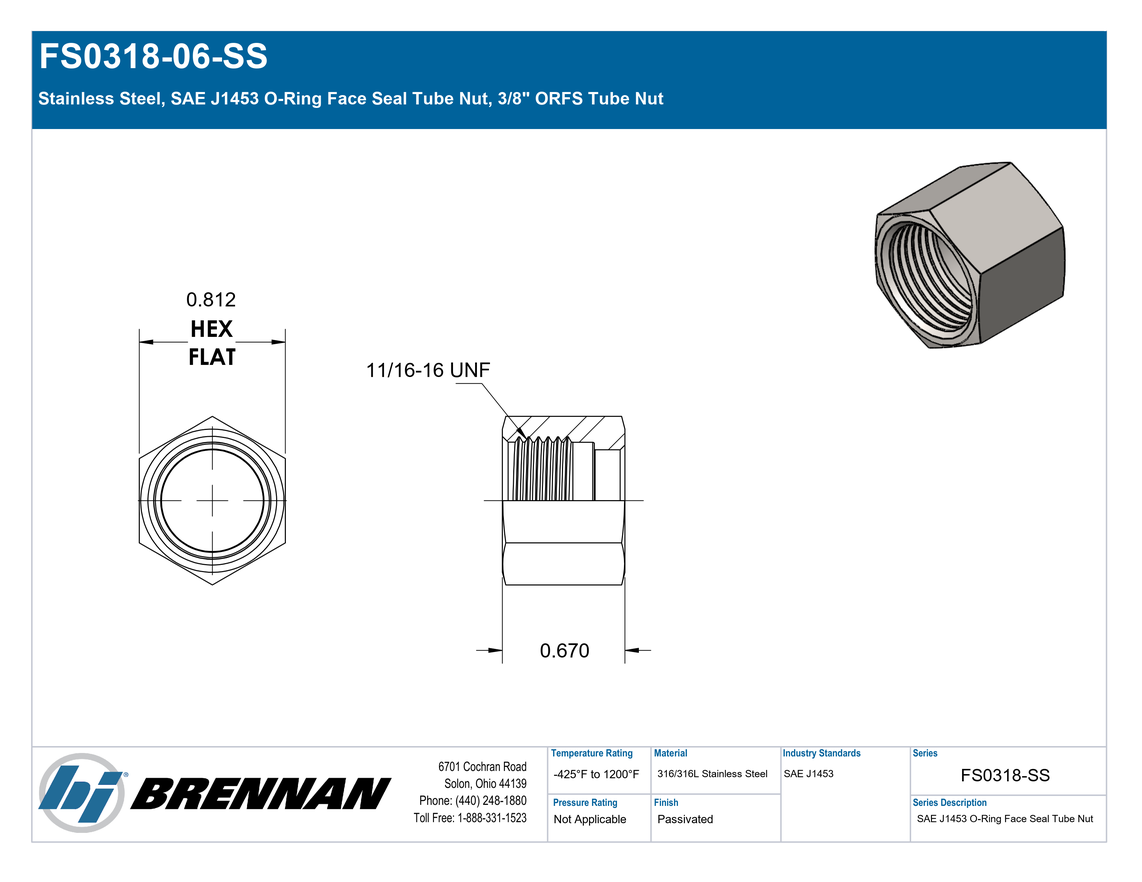

Stainless Steel, SAE J1453 O-Ring Face Seal Tube Nut, 3/8" ORFS Tube Nut
Specifications
| Connection Details | {"Connection Type":"ORFS Tube Nut","Tube OD":"3/8\"","Thread Type":"11/16-16 UNF","Standard":"SAE J1453","Connection Standard":"SAE J1453","Role":"Tube Connection","Connection Role":"Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Nut","Shape Type":"Tube Nut","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.05 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F"} |
| Cross References | {"Aeroquip Part Number":"FC2326-06-259","Parker TFD Part Number":"6 BL-SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | ORFS Tube Nut |
| Technical Series Configuration | SAE J1453 ORFS Tube Nut |
| Side 1 Connection Type | ORFS Tube Nut |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
