Attributes
| Part Number | 7006-10-15 |
|---|---|
| Is Series Page | 0 |
Description

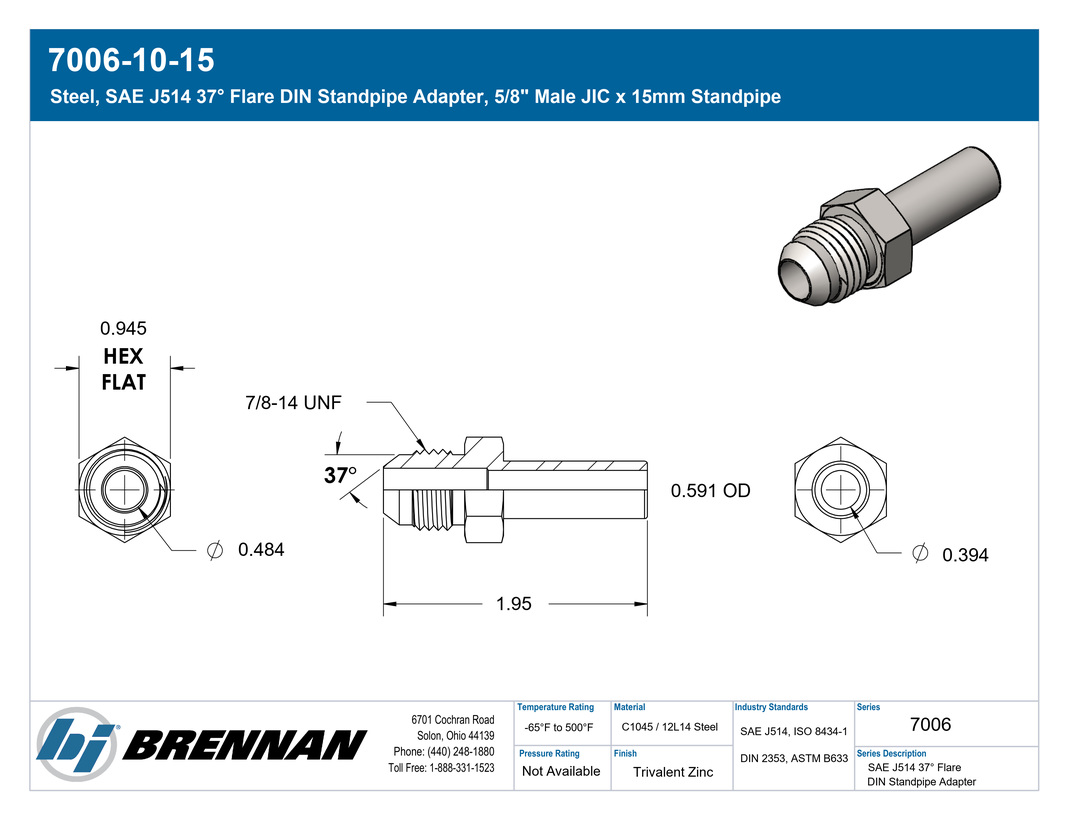

Steel, SAE J514 37° Flare DIN Standpipe Adapter, 5/8" Male JIC x 15mm Standpipe
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Standpipe","Side 2 Standard":"ISO 8434-1, DIN 2353","Side 2 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"0.945","Weight":"0.14 lb"} |
| Performance Specifications | {"Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x DIN Standpipe |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 8434-1/ DIN 2353 Metric Standpipe Adapter |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Standpipe |
| Shape | Straight |
| Product Type | Fittings |
