Attributes
| Part Number | 7009-F-04-14 |
|---|---|
| Is Series Page | 0 |
Description

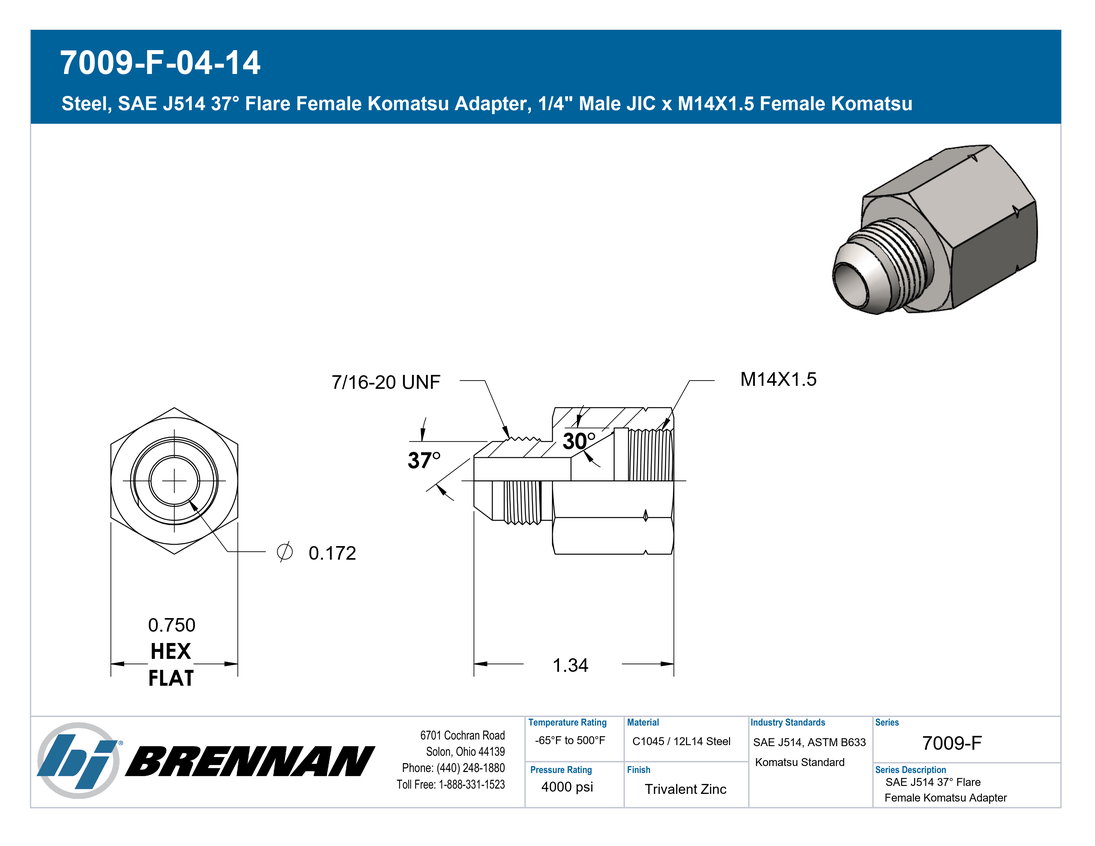

Steel, SAE J514 37° Flare Female Komatsu Adapter, 1/4" Male JIC x M14X1.5 Female Komatsu
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female Komatsu","Side 2 Thread Type":"M14X1.5","Side 2 Standard":"Komatsu Standard","Side 2 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"0.750","Weight":"0.09 lb"} |
| Performance Specifications | {"Working Pressure":"4000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"16000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"4-4XHMKA6S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Female Komatsu |
| Technical Series Configuration | SAE J514 Male JIC Tube x Female Komatsu Tube Adapter |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Female Komatsu |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
