Attributes
| Part Number | 7303-08-08-06-FG |
|---|---|
| Is Series Page | 0 |
Description

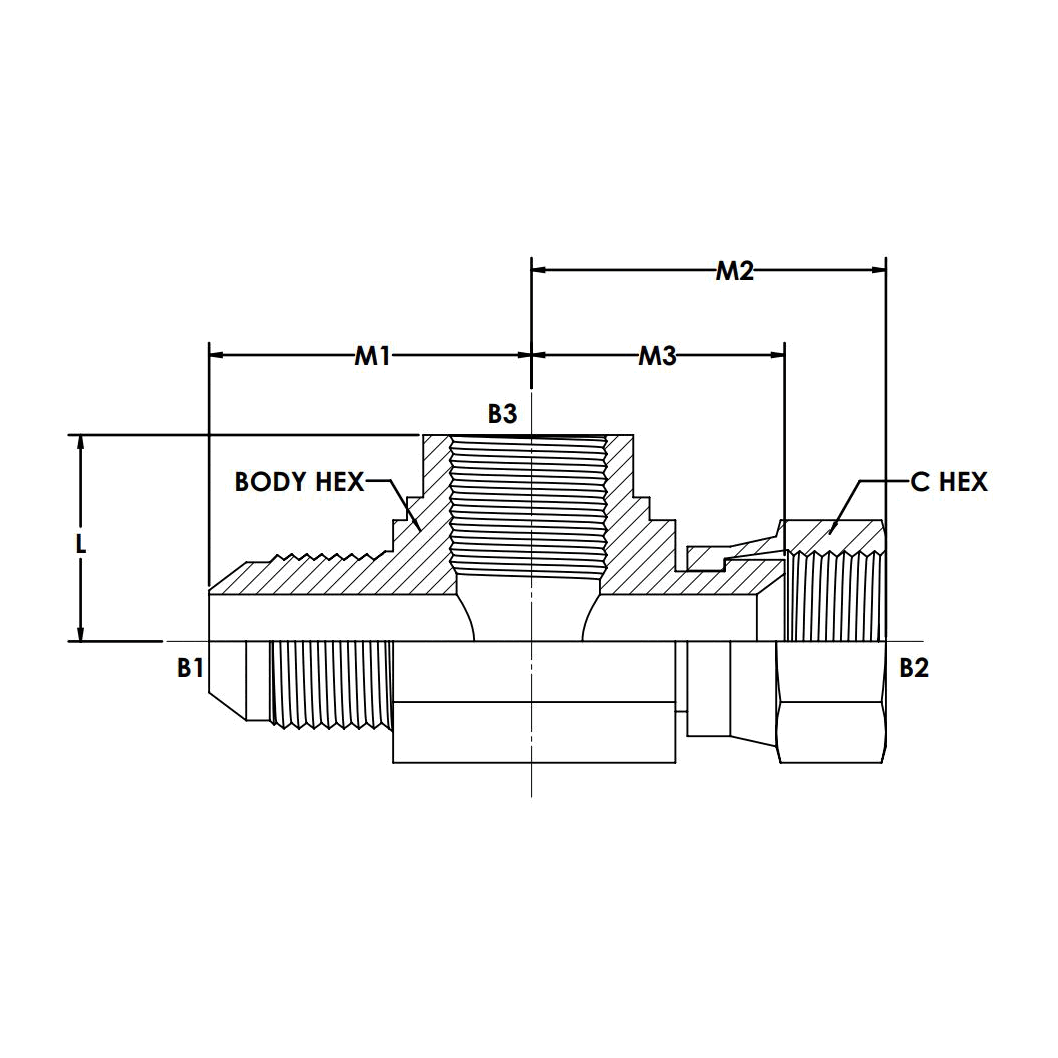

Steel, SAE J514 37° Flare Swivel Adapter BSP Diagnostic Port Tee, 1/2" Male JIC x 1/2" Female JIC Swivel x 3/8-19 Female BSPP
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female JIC Swivel","Side 2 Tube OD":"1/2\"","Side 2 Thread Type":"3/4-16 UNF","Side 2 Standard":"SAE J514 - Class 2B Thread","Side 2 Role":"Line Connection","Side 3 Connection Type":"Female BSPP","Side 3 Thread Type":"G - 3/8-19","Side 3 Standard":"ISO 1179","Side 3 Role":"Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"0.875","Weight":"0.45 lb"} |
| Performance Specifications | {"Working Pressure":"5800 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"23200 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Female JIC Swivel x Female BSPP Gauge Port |
| Technical Series Configuration | SAE J514 Male JIC Tube x SAE J514 Female JIC Swivel Tube x ISO 1179 Female BSPP Gauge Port Tee |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Female JIC Swivel |
| Shape | Tee |
| Product Type | Fittings |
