Attributes
| Part Number | 5304-32-SS |
|---|---|
| Is Series Page | 0 |
Description

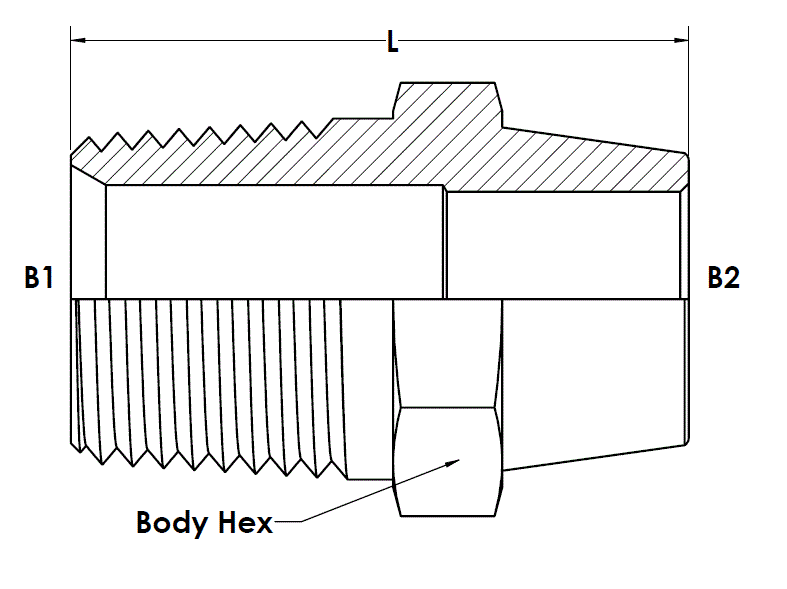

Stainless Steel, SAE J476 Pipe Buttweld Connector, 2" Male NPTF 30° x Buttweld
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"2\"","Side 1 Thread Type":"2-11-1/2 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Buttweld","Side 2 Standard":"Not Defined","Side 2 Role":"Weld Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Stainless Steel","Material Grade":"304"} |
| Dimensions | {"Weight":"0.84 lb"} |
| Performance Specifications | {"Working Pressure":"2400 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"9600 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Pipe x Buttweld |
| Technical Series Configuration | SAE J476 Male NPTF x Buttweld, 304 Stainless Steel Connector |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Buttweld |
| Shape | Straight |
| Product Type | Fittings |
