Attributes
| Part Number | D7405-L10-04-SS |
|---|---|
| Is Series Page | 0 |
Description

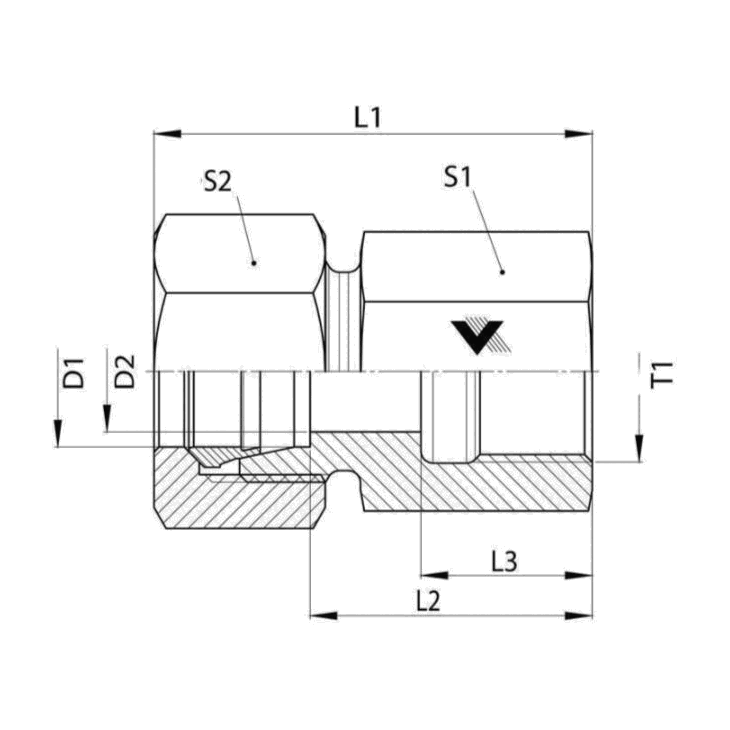

Stainless Steel, DIN 2353 Female Connector, Light 10mm Tube OD x 1/4" BSPP (Type G)
Specifications
| Connection Details | {"Side 1 Connection Type":"DIN Tube","Side 1 Tube OD":"10mm","Side 1 Thread Type":"M16X1.5","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Tube Connection","Side 1 DIN Pressure Series":"Light","Side 2 Connection Type":"Female BSPP","Side 2 Thread Type":"G - 1/4-19","Side 2 Standard":"ISO 1179","Side 2 Role":"Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Female Connector","Primary Material":"Stainless Steel","Material Grade":"316Ti (1.4571)"} |
| Dimensions | {"Hex/Wrench":"19mm","Weight":"0.15 lb"} |
| Performance Specifications | {"Working Pressure":"4569 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"18276 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"GAI10LR71"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | DIN Tube x Female BSPP |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x ISO 1179-1 Female BSPP Connector |
| Side 1 Connection Type | DIN Tube |
| Side 2 Connection Type | Female BSPP |
| Shape | Straight |
| Product Type | Fittings |
