Attributes
| Part Number | 7230-06-06-FG |
|---|---|
| Is Series Page | 0 |
Description

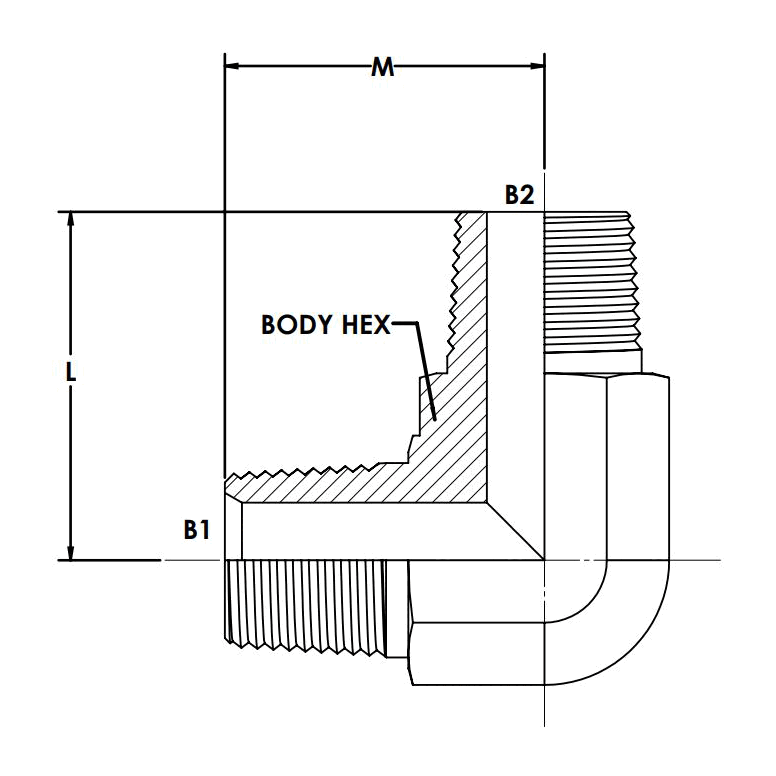

Steel, SAE J476 Pipe Male BSPT 90° Elbow, 3/8" Male NPTF 30° x 3/8" Male BSPT
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"3/8\"","Side 1 Thread Type":"3/8-18 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Male BSPT","Side 2 Pipe Size":"3/8\"","Side 2 Thread Type":"R - 3/8-19","Side 2 Standard":"ISO 7-1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Male Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"0.750","Weight":"0.31 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Pipe x Male BSPT |
| Technical Series Configuration | SAE J476 Male NPTF Pipe x ISO 7-1 Male BSPT Pipe 90° Elbow |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Male BSPT |
| Shape | 90° Elbow |
| Product Type | Fittings |
