Attributes
| Part Number | D2501-L08-08-SS-X |
|---|---|
| Is Series Page | 0 |
Description

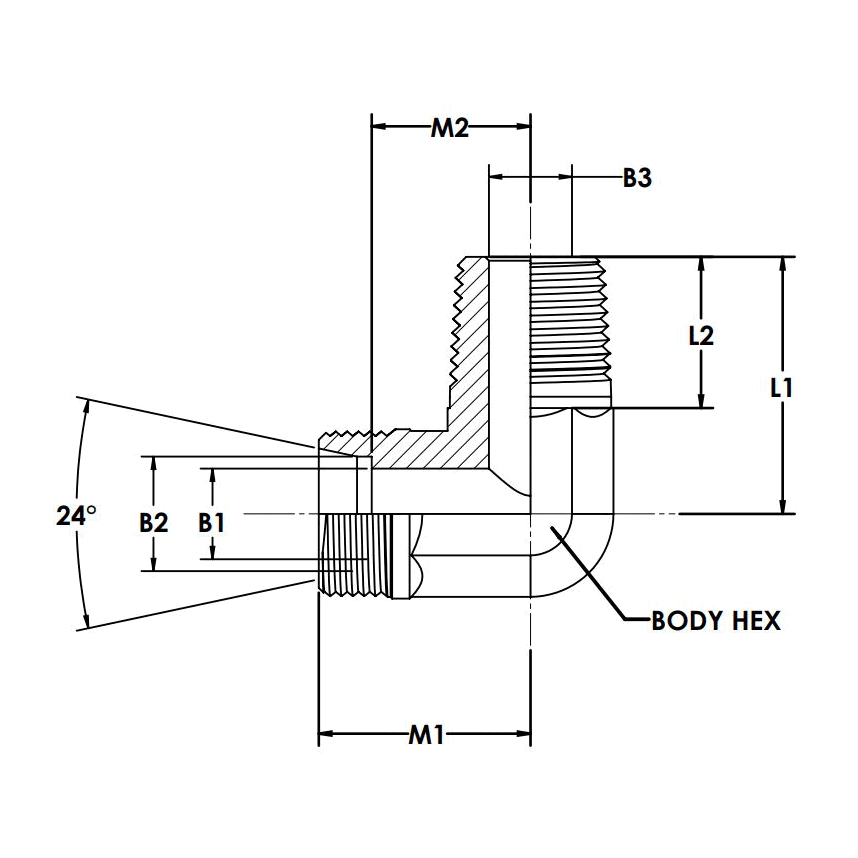

Stainless Steel, DIN 2353 90° Male Elbow, Light 8mm Tube OD x 1/2" NPT, Body Only
Specifications
| Connection Details | {"Side 1 Connection Type":"Male DIN","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male NPT","Side 2 Pipe Size":"1/2\"","Side 2 Thread Type":"1/2-14 NPT","Side 2 Standard":"ANSI/ASME B1.20.1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Male Elbow","Primary Material":"Stainless Steel","Material Grade":"316Ti (1.4571)"} |
| Dimensions | {"Weight":"0.30 lb"} |
| Performance Specifications | {"Working Pressure":"4569 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"18276 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"WE08L1/2NPT71X"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male DIN x Male Pipe, Body Only |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x ANSI/ASME B1.20.1 Male NPT 90° Elbow, Body Only |
| Side 1 Connection Type | Male DIN |
| Side 2 Connection Type | Male NPT |
| Shape | 90° Elbow |
| Product Type | Fittings |
