Attributes
| Part Number | 2705-06-04 |
|---|---|
| Is Series Page | 0 |
Description

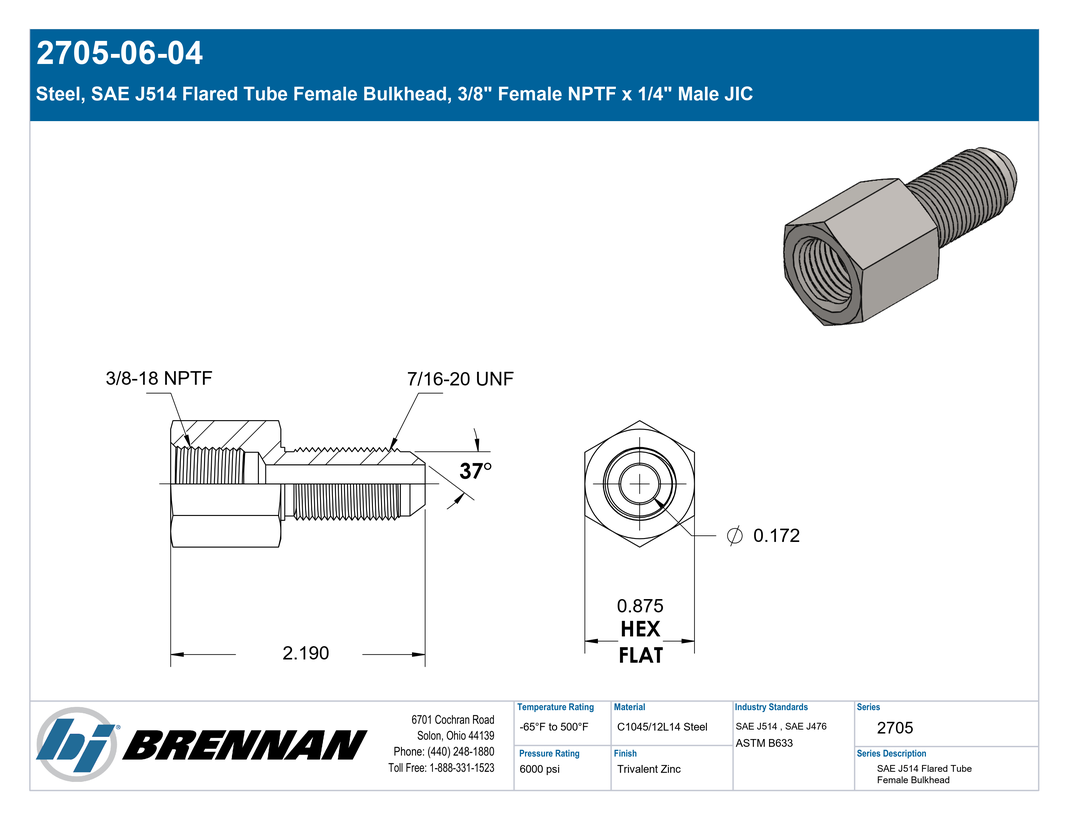

Steel, SAE J514 Flared Tube Female Bulkhead, 3/8" Female NPTF x 1/4" Male JIC
Specifications
| Connection Details | {"Side 1 Connection Type":"Female NPTF","Side 1 Pipe Size":"3/8\"","Side 1 Thread Type":"3/8-18 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"1/4\"","Side 2 Thread Type":"7/16-20 UNF","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Female Bulkhead","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Feature":"Bulkhead"} |
| Dimensions | {"Hex/Wrench":"0.875","Weight":"0.16 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2239-1-6-4S","Parker TFD Part Number":"4-6 WGTX-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Female Pipe x Male JIC Bulkhead |
| Technical Series Configuration | SAE J476 Female NPTF x SAE J514 Male JIC Tube Bulkhead |
| Side 1 Connection Type | Female NPTF |
| Side 2 Connection Type | Male JIC |
| Shape | Straight |
| Product Type | Fittings |
