| Part Number | FS1703-20-20-FG |
|---|---|
| Is Series Page | 0 |
Description

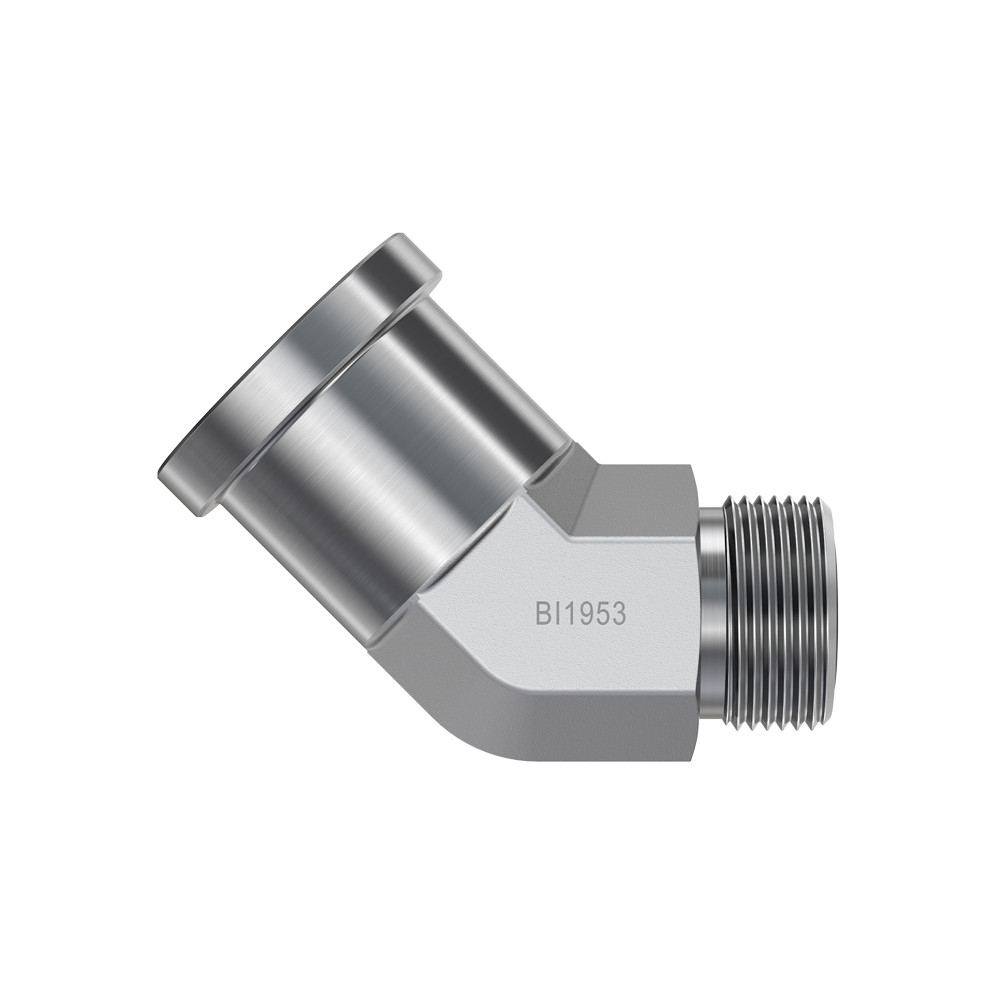

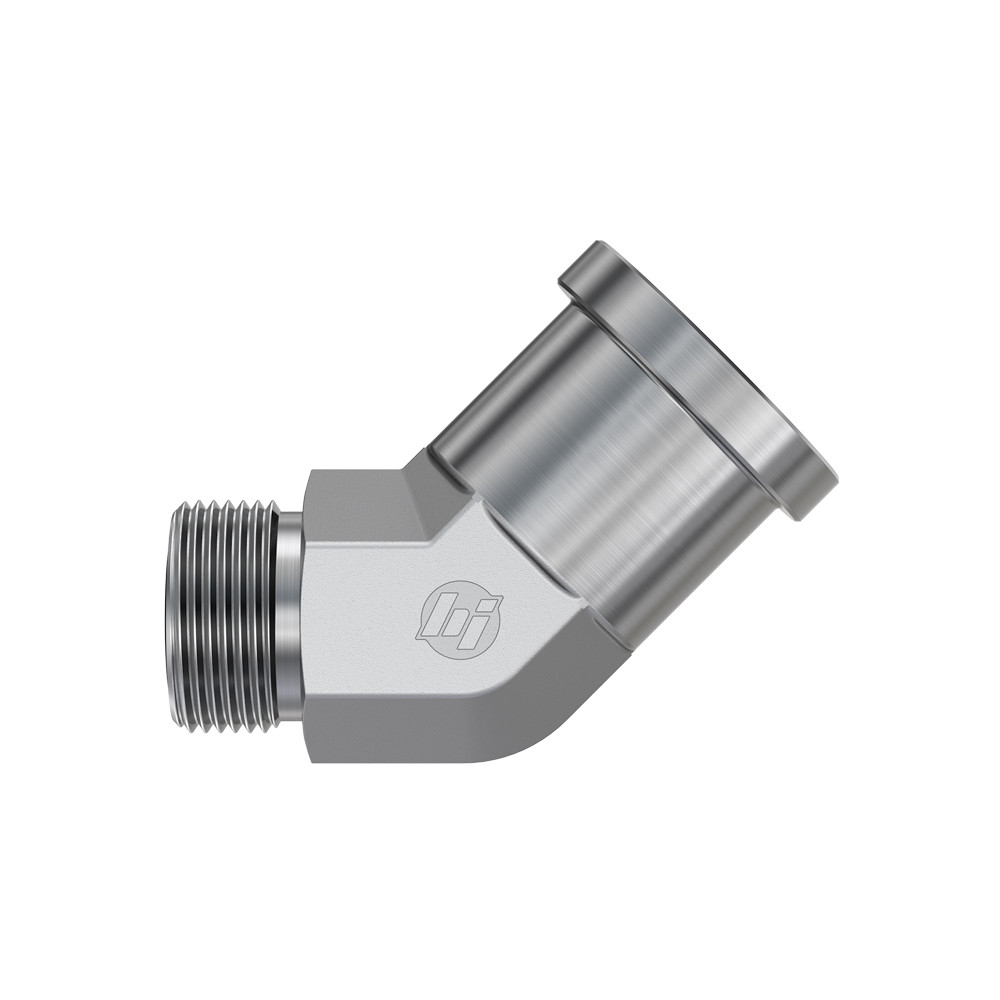

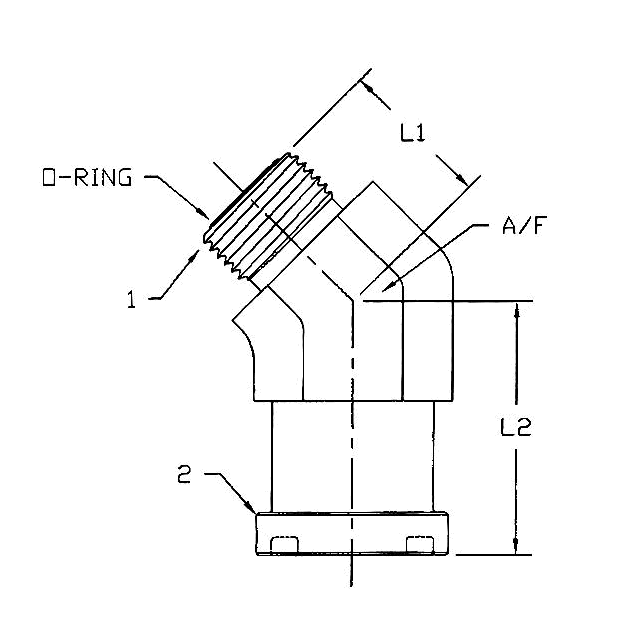

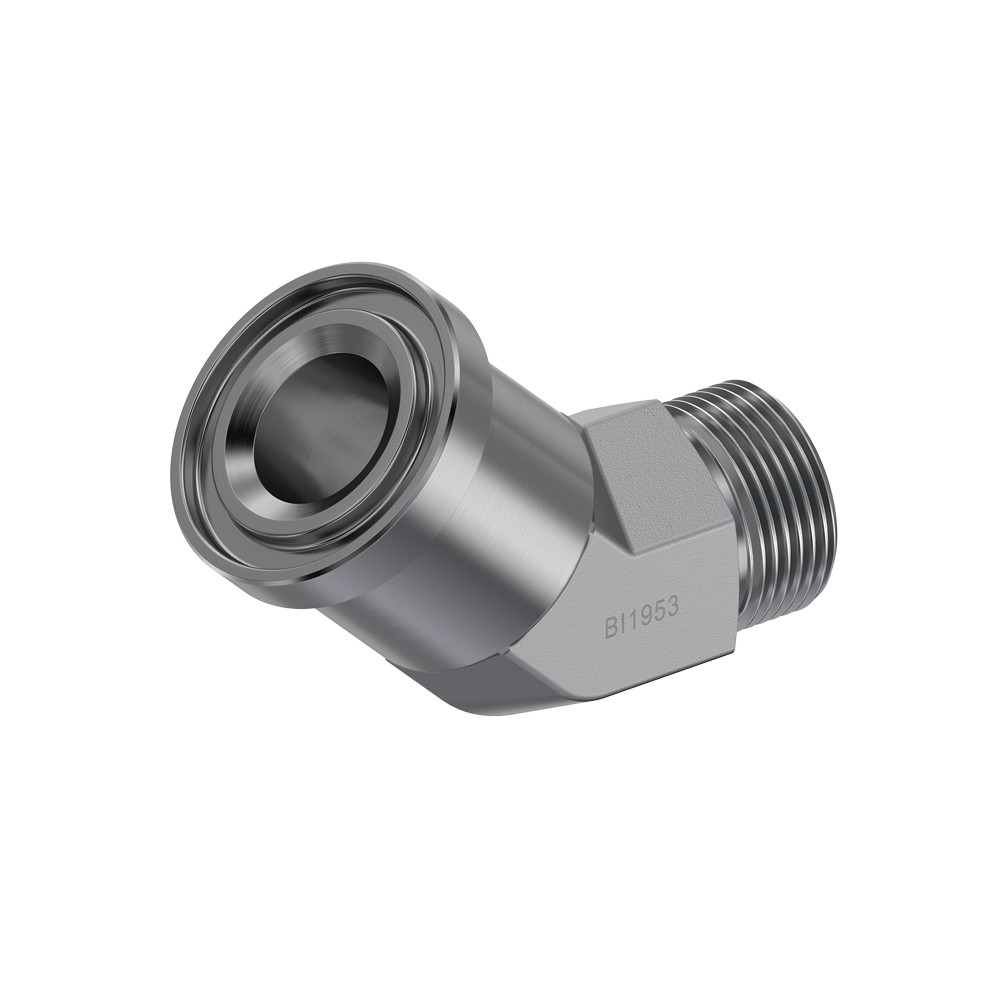

Steel, SAE J1453 O-Ring Face Seal 45° Code 61 Flange Forged Elbow, 1-1/4" Male ORFS x 1-1/4" Split Flange Head
Specifications
| Connection Details | {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"1-1/4\"","Side 1 Thread Type":"1-11/16-12 UN","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-20","Side 2 Connection Type":"Split Flange Head","Side 2 Flange Size":"1-1/4\"","Side 2 Standard":"SAE J518","Side 2 Role":"Flange Connection"} |
|---|---|
| Body & Materials | {"Shape":"45° Elbow","Shape Type":"Male Forged Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"1.43 lb"} |
| Performance Specifications | {"Working Pressure":"4000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"16000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"20 LOVQ1-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male ORFS x Code 61 Flange |
| Technical Series Configuration | SAE J1453 Male ORFS Tube x SAE J518 Code 61 Split Flange Head 45° Elbow |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | Split Flange Head |
| Shape | 45° Elbow |
| Product Type | Fittings |
