Attributes
| Part Number | D0318-S08 |
|---|---|
| Is Series Page | 0 |
Description

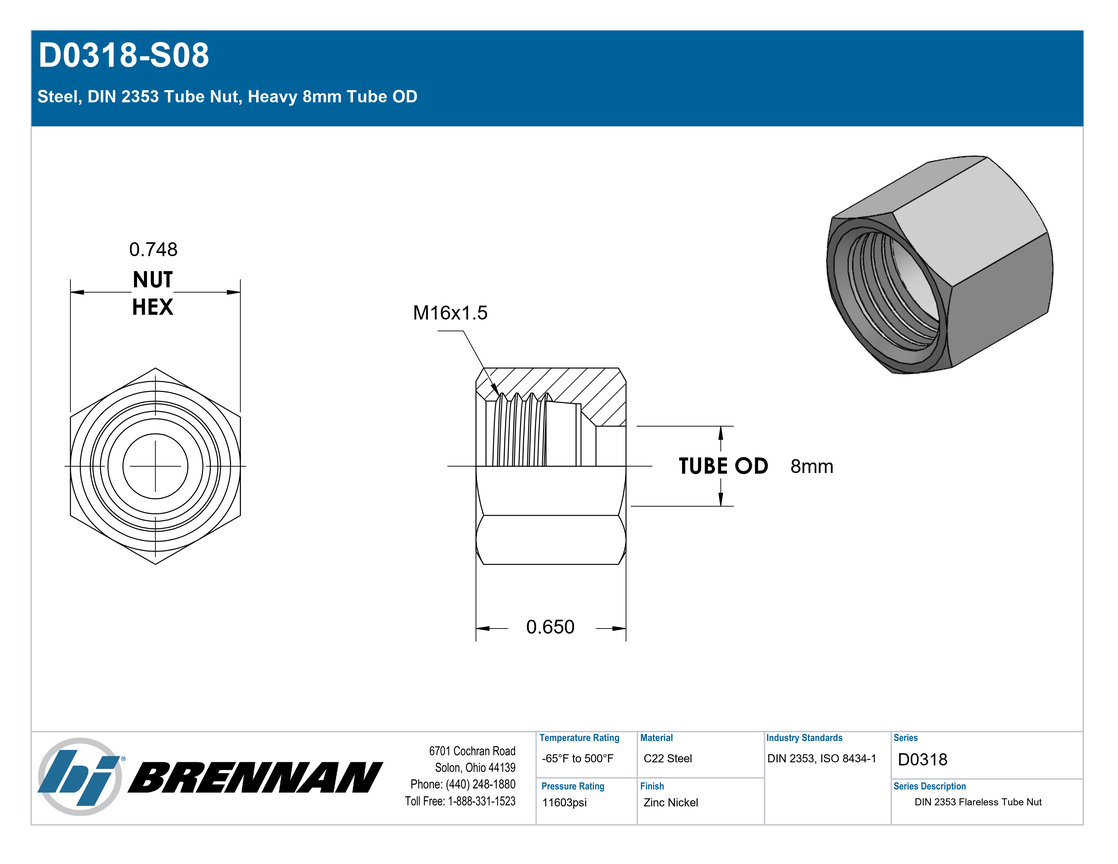

Steel, DIN 2353 Tube Nut, Heavy 8mm Tube OD
Specifications
| Connection Details | {"Connection Type":"DIN Tube Nut","Tube OD":"8mm","DIN Pressure Series":"Heavy","Thread Type":"Female Metric","Standard":"DIN 2353","Connection Standard":"DIN 2353","Role":"Tube Connection","Connection Role":"Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Nut","Shape Type":"Tube Nut","Primary Material":"Steel","Material Grade":"11SMnPb30","Plating":"Zinc Nickel"} |
| Dimensions | {"Hex/Wrench":"19mm","Weight":"0.05 lb"} |
| Performance Specifications | {"Working Pressure":"11603 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"1,000 hrs no red rust per DIN ISO 9227","Burst Pressure":"46412 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"M08SCFX"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | DIN Tube Nut |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube Nut |
| Side 1 Connection Type | DIN Tube Nut |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
