Attributes
| Part Number | 1800-12-16X4.08 |
|---|---|
| Is Series Page | 0 |
Description

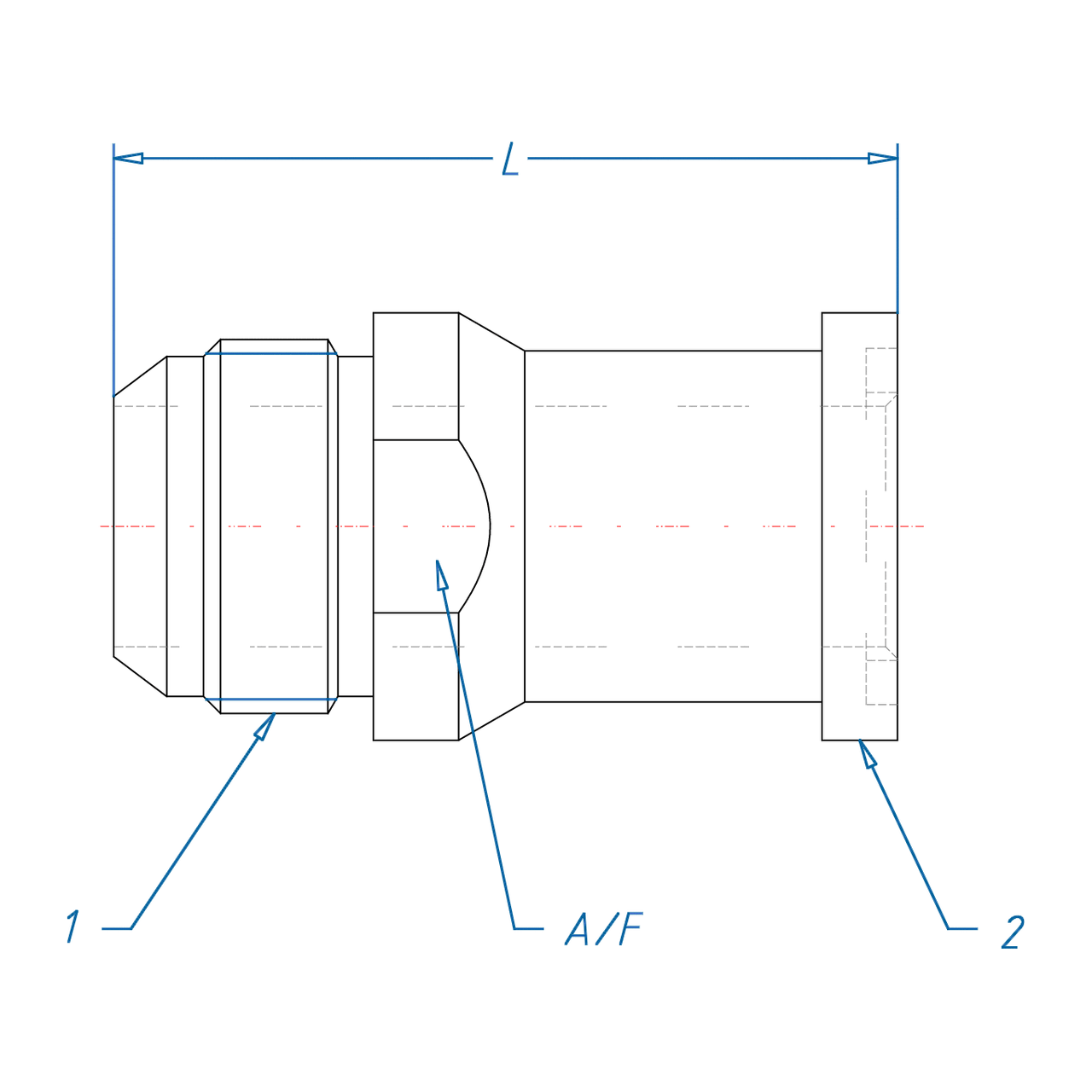

Steel, SAE J514 37° Flare Code 62 Flange Adapter, Male JIC x Split Flange Head
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Split Flange Head","Side 2 Standard":"SAE J518","Side 2 Role":"Flange Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Adapter","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"1.48 lb"} |
| Performance Specifications | {"Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Code 62 Flange |
| Technical Series Configuration | SAE J514 Male JIC Tube x SAE J518 Code 62 Split Flange Head Adapter |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Split Flange Head |
| Shape | Straight |
| Product Type | Fittings |
