Attributes
| Part Number | 6402-08-06-O |
|---|---|
| Is Series Page | 0 |
Description

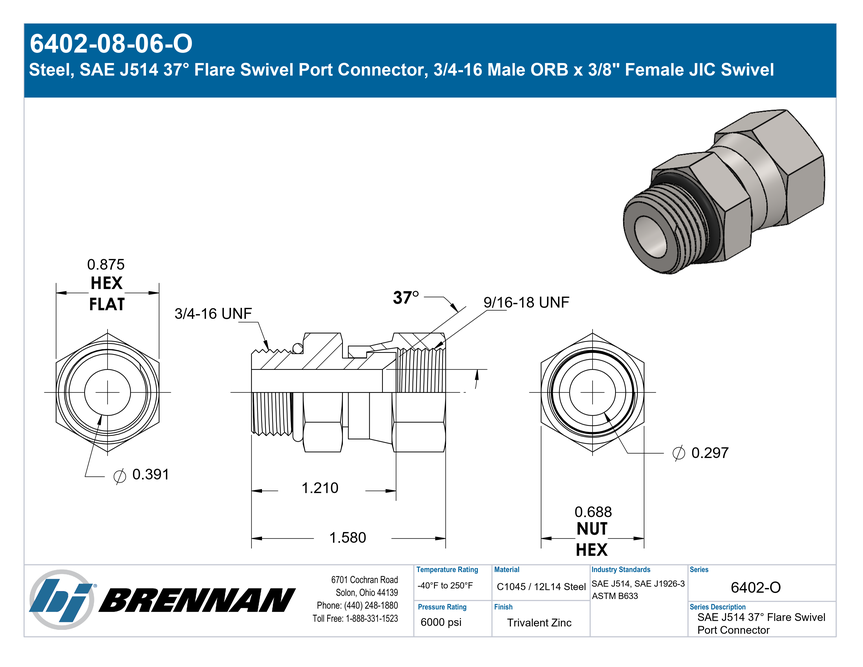

Steel, SAE J514 37° Flare Swivel Port Connector, 3/4-16 Male ORB x 3/8" Female JIC Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Male ORB","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-08","Side 2 Connection Type":"Female JIC Swivel","Side 2 Tube OD":"3/8\"","Side 2 Thread Type":"9/16-18 UNF","Side 2 Standard":"SAE J514 - Class 2B Thread","Side 2 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Swivel Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.14 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2266-8-6S","Parker TFD Part Number":"6-8 F65OX-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male ORB x Female JIC Swivel |
| Technical Series Configuration | SAE J1926-3 Male O-Ring Boss x SAE J514 Female JIC Swivel Connector |
| Side 1 Connection Type | Male ORB |
| Side 2 Connection Type | Female JIC Swivel |
| Shape | Straight |
| Product Type | Fittings |
