Attributes
| Part Number | FS2700-32-32-SS |
|---|---|
| Is Series Page | 0 |
Description

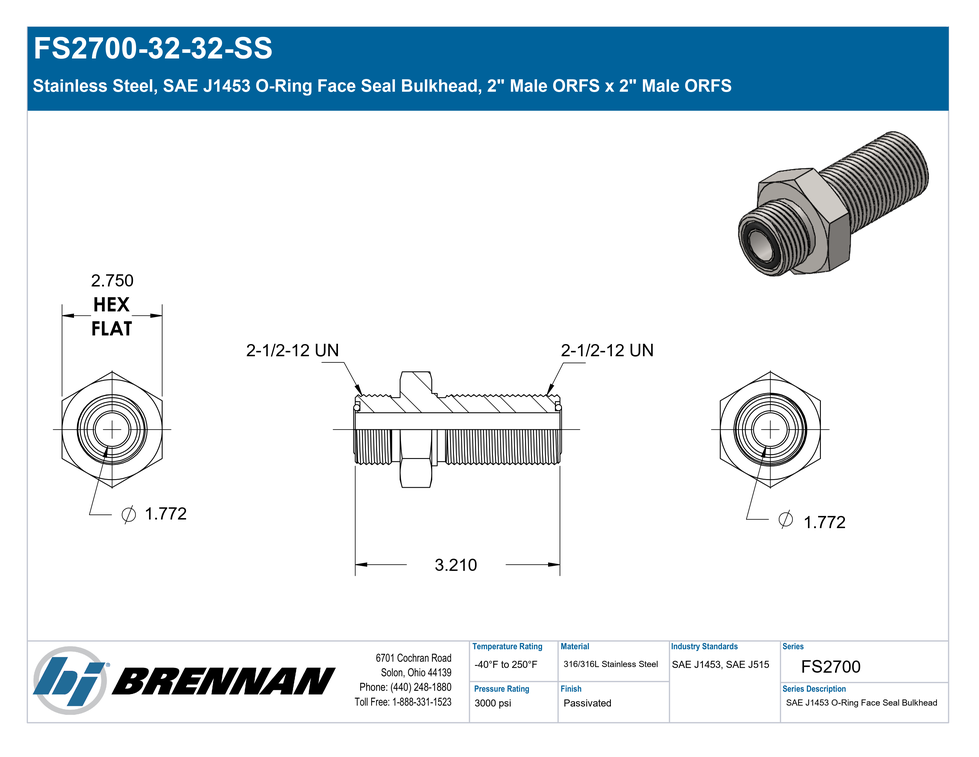

Stainless Steel, SAE J1453 O-Ring Face Seal Bulkhead, 2" Male ORFS x 2" Male ORFS
Specifications
| Connection Details | {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"2\"","Side 1 Thread Type":"2-1/2-12 UN","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-32","Side 2 Connection Type":"Male ORFS","Side 2 Tube OD":"2\"","Side 2 Thread Type":"2-1/2-12 UN","Side 2 Standard":"SAE J1453 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 2 Replacement Seal":"FS4000-32"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Bulkhead","Primary Material":"Stainless Steel","Material Grade":"316/316L","Feature":"Bulkhead","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"2.30 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"32 WLO-SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male ORFS x Male ORFS Bulkhead |
| Technical Series Configuration | SAE J1453 Male ORFS Tube x Male ORFS Tube Bulkhead |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | Male ORFS |
| Shape | Straight |
| Product Type | Fittings |
