Attributes
| Part Number | 0403-TS-24-24 |
|---|---|
| Is Series Page | 0 |
Description

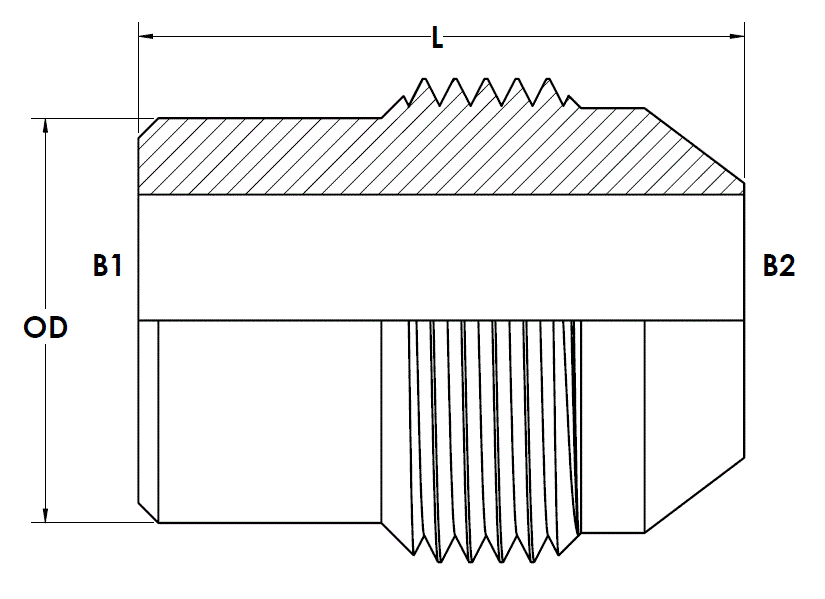

Steel, SAE J514 Tube Spud Male Flared Connector, 1-1/2" Male JIC x 1-1/2" Tube Spud
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1-1/2\"","Side 1 Thread Type":"1-7/8-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Tube Spud","Side 2 Tube OD":"1-1/2\"","Side 2 Standard":"SAE J514","Side 2 Role":"Weld Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Tube Spud","Primary Material":"Steel","Material Grade":"1018/1020","Plating":"Unplated"} |
| Dimensions | {"Weight":"0.44 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-65°F to 500°F","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"73420-1-24S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Tube Spud x Male JIC |
| Technical Series Configuration | SAE J514 Tube Spud x Male JIC Tube Connector |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Tube Spud |
| Shape | Straight |
| Product Type | Fittings |
