Attributes
| Part Number | D2605-S14-08-S14-SS |
|---|---|
| Is Series Page | 0 |
Description

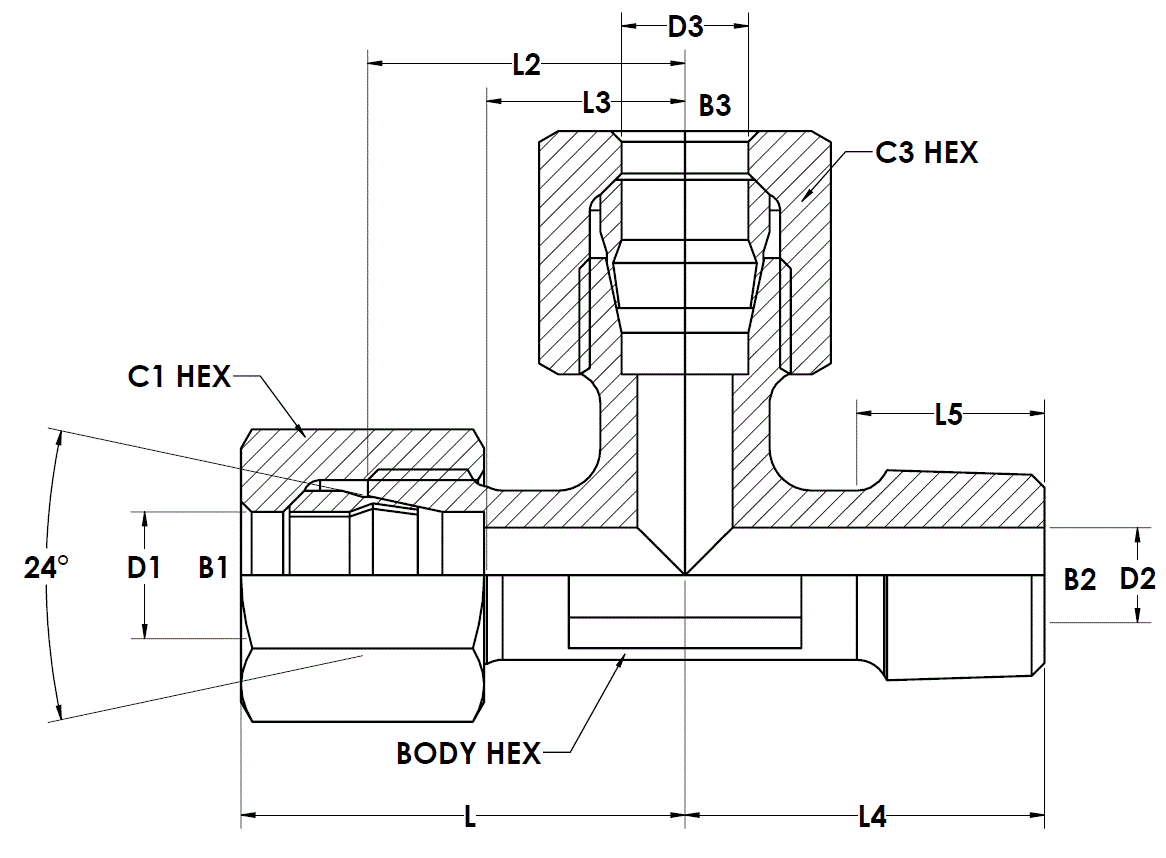

Stainless Steel, DIN 2353 Male Run Tee, Heavy 14mm Tube OD x 1/2" NPT x Heavy 14mm Tube OD
Specifications
| Connection Details | {"Side 1 Connection Type":"DIN Tube","Side 1 Tube OD":"14mm","Side 1 Thread Type":"M22X1.5","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Tube Connection","Side 1 DIN Pressure Series":"Heavy","Side 2 Connection Type":"Male NPT","Side 2 Pipe Size":"1/2\"","Side 2 Thread Type":"1/2-14","Side 2 Standard":"ANSI/ASME B1.20.1","Side 2 Role":"Pipe Connection","Side 3 Connection Type":"DIN Tube","Side 3 Tube OD":"14mm","Side 3 Thread Type":"M22X1.5","Side 3 Standard":"DIN 2353, ISO 8434-1","Side 3 Role":"Tube Connection","Side 3 DIN Pressure Series":"Heavy"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Male Run Tee","Primary Material":"Stainless Steel","Material Grade":"316Ti (1.4571)"} |
| Dimensions | {"Hex/Wrench":"19mm","Weight":"0.60 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"LE14S1/2NPT71"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | DIN Tube x Male Pipe x DIN Tube |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x ANSI/ASME B1.20.1 Male NPT x Flareless Tube Run Tee |
| Side 1 Connection Type | DIN Tube |
| Side 2 Connection Type | Male NPT |
| Shape | Tee |
| Product Type | Fittings |
