Attributes
| Part Number | 5504-06-06-FG |
|---|---|
| Is Series Page | 0 |
Description

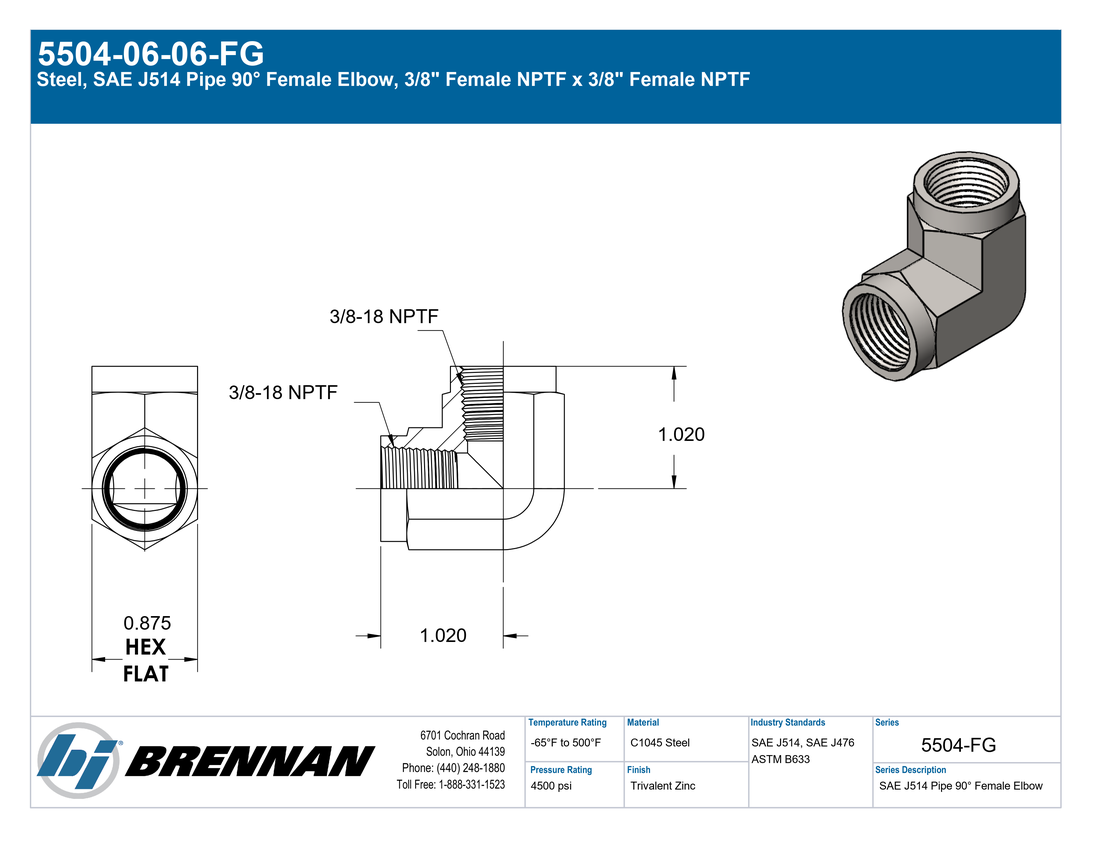

Steel, SAE J514 Pipe 90° Female Elbow, 3/8" Female NPTF x 3/8" Female NPTF
Specifications
| Connection Details | {"Side 1 Connection Type":"Female NPTF","Side 1 Pipe Size":"3/8\"","Side 1 Thread Type":"3/8-18 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"3/8\"","Side 2 Thread Type":"3/8-18 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Female Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.23 lb"} |
| Performance Specifications | {"Working Pressure":"4500 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"18000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2087-6-6S","Parker Hose Part Number":"2202-6-6","Parker TFD Part Number":"3/8 DD-S","SAE J514 Part Number":"SAE J514 6-6 140238C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Female Pipe x Female Pipe |
| Technical Series Configuration | SAE J476 Female NPTF x Female NPTF 90° Elbow |
| Side 1 Connection Type | Female NPTF |
| Side 2 Connection Type | Female NPTF |
| Shape | 90° Elbow |
| Product Type | Fittings |
