Attributes
| Part Number | 3474-08-08-NWO-SS-VITON |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J1926 Adjustable O-Ring Boss Nipple, 3/4-16 Male Adjustable ORB x 3/4-16 Male ORB, FKM Seal
Specifications
| Connection Details | {"Side 1 Connection Type":"Male Adjustable ORB","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4001-08","Side 2 Connection Type":"Male ORB","Side 2 Thread Type":"3/4-16 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4001-08"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Nipple","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} |
| Dimensions | {"Weight":"0.17 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-15°F to 400°F","Temperature Notes":"Temperature limited by FKM Seal","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"213-259-2220-8-8","Parker TFD Part Number":"8 F5OHAO-SS FKM"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Adjustable ORB x Male ORB |
| Technical Series Configuration | SAE J1926-3 Male Adjustable O-Ring Boss x Male O-Ring Boss Nipple |
| Side 1 Connection Type | Male Adjustable ORB |
| Side 2 Connection Type | Male ORB |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

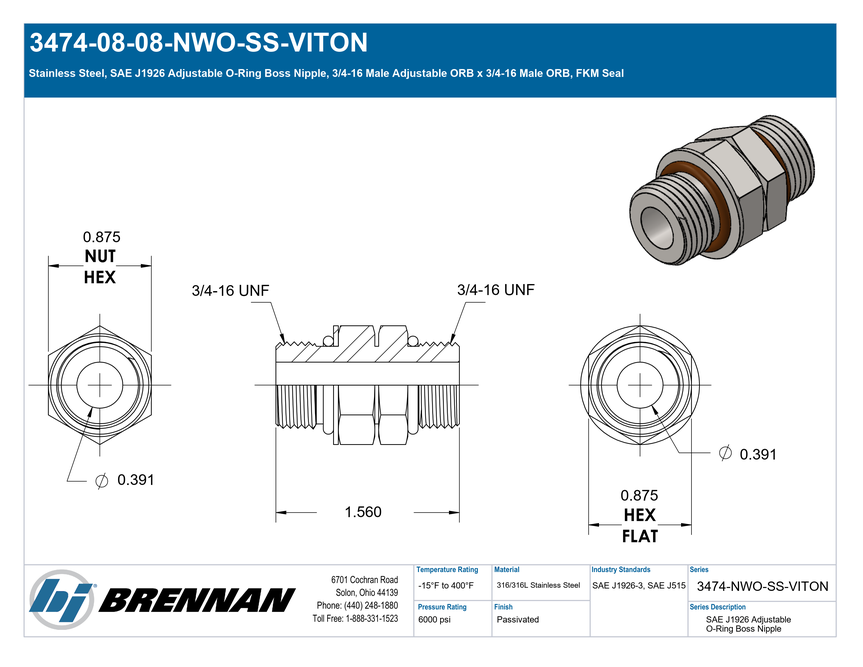

Specification Sheet
Open PDF
