Attributes
| Part Number | 2601-06-06-02-FG |
|---|---|
| Is Series Page | 0 |
Description

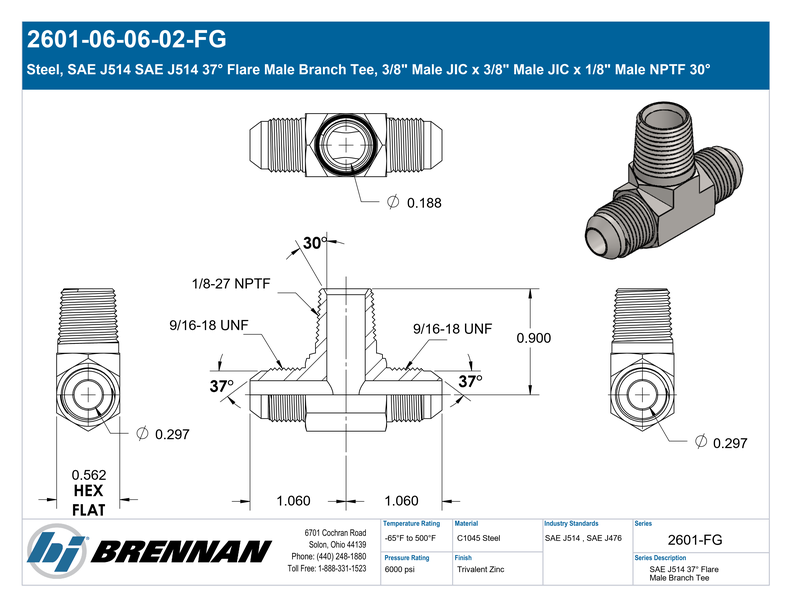

Steel, SAE J514 37° Flare Male Branch Tee, 3/8" Male JIC x 3/8" Male JIC x 1/8" Male NPTF 30°
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"3/8\"","Side 2 Thread Type":"9/16-18 UNF","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 3 Connection Type":"Male NPTF 30°","Side 3 Pipe Size":"1/8\"","Side 3 Thread Type":"1/8-27 NPTF","Side 3 Standard":"SAE J476","Side 3 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Male Branch Tee","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"0.562","Weight":"0.12 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2030-2-6S","Parker TFD Part Number":"6-6-2 STX-S","SAE J514 Part Number":"SAE J514 6-6-2 070425C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male JIC x Male Pipe |
| Technical Series Configuration | SAE J514 Male JIC Tube x Male JIC Tube x SAE J476 Male NPTF Branch Tee |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male JIC |
| Shape | Tee |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
