Attributes
| Part Number | 7007-20-S38-52 |
|---|---|
| Is Series Page | 0 |
Description

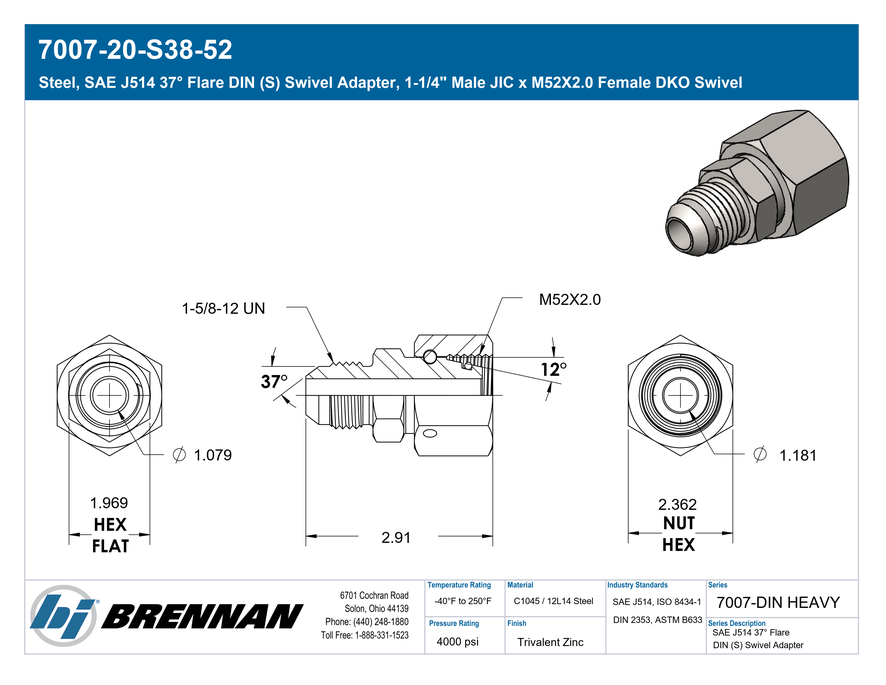

Steel, SAE J514 37° Flare DIN (S) Swivel Adapter, 1-1/4" Male JIC x M52X2.0 Female DKO Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1-1/4\"","Side 1 Thread Type":"1-5/8-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female Metric Swivel","Side 2 Thread Type":"M52X2.0","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"1.969","Weight":"1.50 lb"} |
| Performance Specifications | {"Working Pressure":"4000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"16000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"20-38S XHU86-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Female DKO Swivel (Heavy) |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 8434-1/ DIN 2353 Heavy Series Female Metric DKO Swivel Line Adapter |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Female Metric Swivel |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
