Attributes
| Part Number | 7007-08-L10-16-SS |
|---|---|
| Is Series Page | 0 |
Description

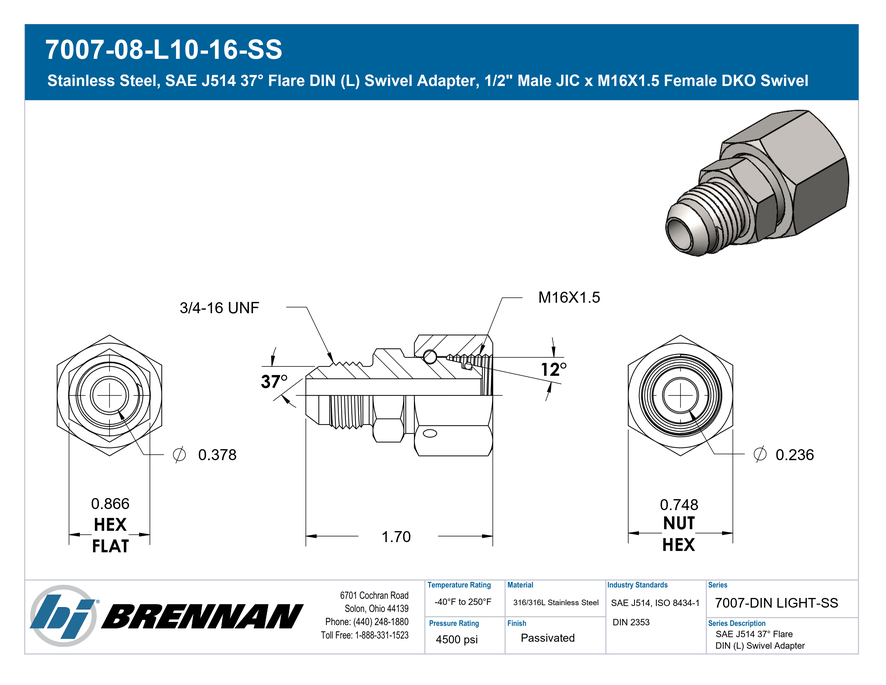

Stainless Steel, SAE J514 37° Flare DIN (L) Swivel Adapter, 1/2" Male JIC x M16X1.5 Female DKO Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female Metric Swivel","Side 2 Thread Type":"M16X1.5","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"0.866","Weight":"0.16 lb"} |
| Performance Specifications | {"Working Pressure":"4500 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Burst Pressure":"18000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"8-10L XHU86-SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Female DKO Swivel (Light) |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 8434-1/ DIN 2353 Light Series Female Metric DKO Swivel Line Adapter |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Female Metric Swivel |
| Shape | Straight |
| Product Type | Fittings |
