Attributes
| Part Number | 7102-06-06-NWO-SS |
|---|---|
| Is Series Page | 0 |
Description

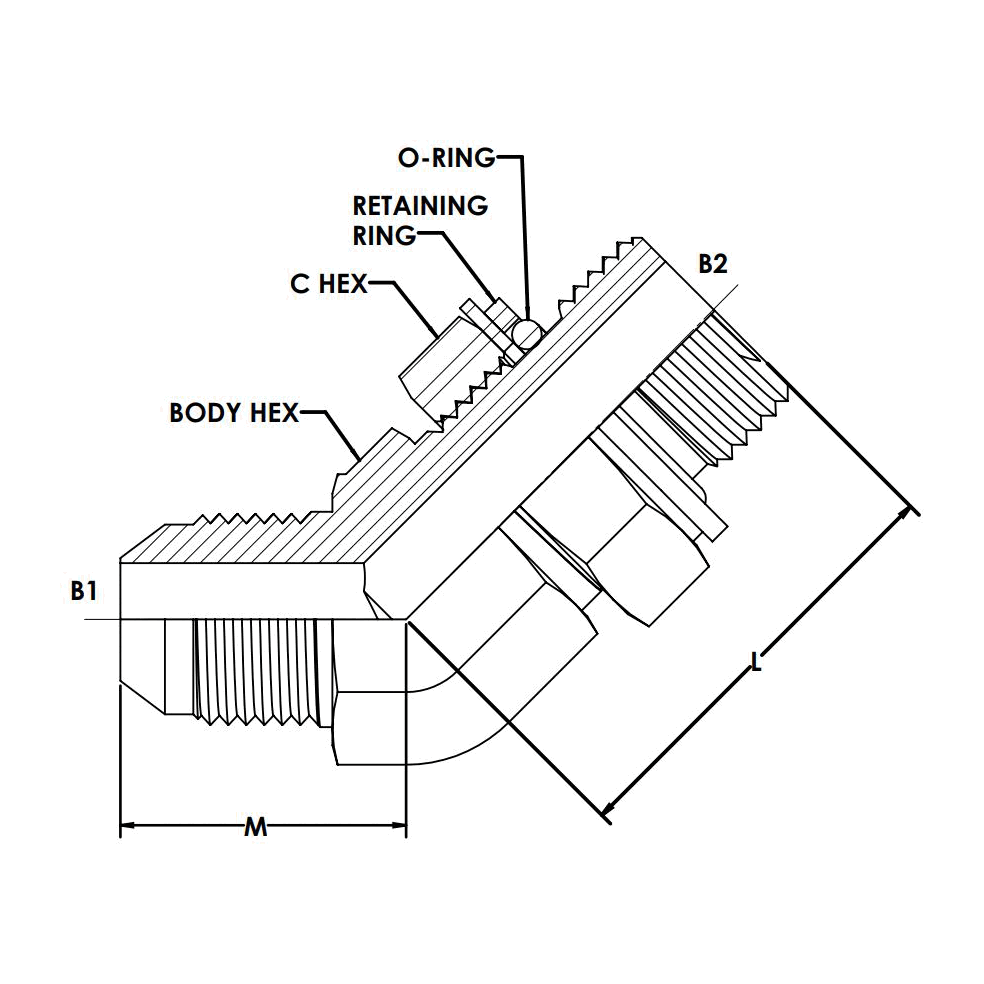

Stainless Steel, SAE J514 37° Flare Male BSPP Adjustable (Type H) Port 45° Elbow, 3/8" Male JIC x 3/8-19 Male BSPP Adjustable ORR
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPP Adjustable ORR","Side 2 Thread Type":"G - 3/8-19","Side 2 Standard":"ISO 1179","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"9901-06","Side 2 Replacement Washer":"9200-06-SS"} |
|---|---|
| Body & Materials | {"Shape":"45° Elbow","Shape Type":"Male Elbow","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"0.750","Weight":"0.18 lb"} |
| Performance Specifications | {"Working Pressure":"3600 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Burst Pressure":"14400 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"6-6V4OMXSS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male BSPP Adjustable ORR |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 1179 Male BSPP Adjustable ORR (Type H) Port 45° Elbow |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male BSPP Adjustable ORR |
| Shape | 45° Elbow |
| Product Type | Fittings |
