Attributes
| Part Number | 6408-16-O-SS-VITON |
|---|---|
| Is Series Page | 0 |
Description

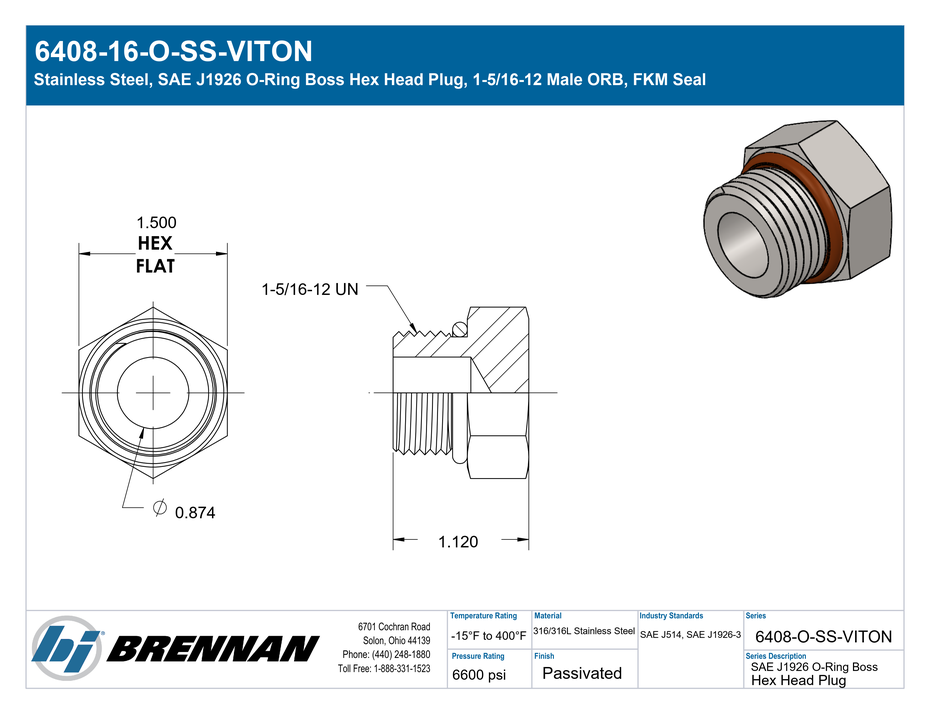

Stainless Steel, SAE J1926 O-Ring Boss Hex Head Plug, 1-5/16-12 Male ORB, FKM Seal
Specifications
| Connection Details | {"Connection Type":"Male ORB","Thread Type":"1-5/16-12 UN","Standard":"SAE J1926","Connection Standard":"SAE J1926","Role":"Port Connection","Connection Role":"Port Connection","Replacement Seal":"4001-16"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} |
| Dimensions | {"Weight":"0.51 lb"} |
| Performance Specifications | {"Working Pressure":"6600 psi","Temperature Range":"-15°F to 400°F","Temperature Notes":"Temperature limited by FKM Seal","Burst Pressure":"26400 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"213-259-900598-16","Parker TFD Part Number":"16 P5ON-SS FKM","SAE J514 Part Number":"SAE J514 16 090109ASF"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male ORB Hex Head Plug |
| Technical Series Configuration | SAE J1926-3 Male O-Ring Boss Hex Head Plug |
| Side 1 Connection Type | Male ORB |
| Shape | Cap/Plug |
| Product Type | Fittings |
