Attributes
| Part Number | F0403-10-10-O |
|---|---|
| Is Series Page | 0 |
Description

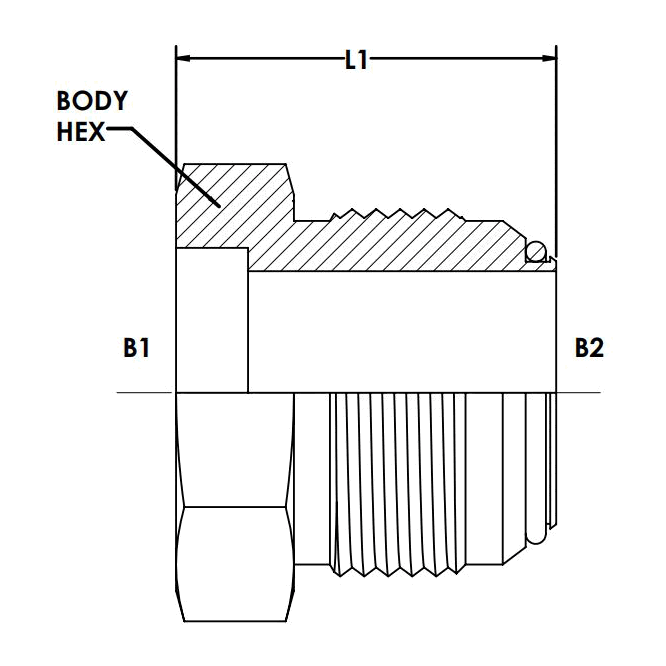

Steel, SAE J514 Flare O-Ring Tube Bore Connector, 5/8" Bore x 5/8" Male Flare-O
Specifications
| Connection Details | {"Side 1 Connection Type":"Bore","Side 1 Tube OD":"5/8\"","Side 1 Standard":"Not Defined","Side 1 Role":"Tube Connection","Side 2 Connection Type":"Male Flare-O","Side 2 Tube OD":"5/8\"","Side 2 Thread Type":"7/8-14 UNF","Side 2 Standard":"SAE J514","Side 2 Role":"Line/Tube Connection","Side 2 Replacement Seal":"F4003-10"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"1018/1020","Plating":"Unplated","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.11 lb"} |
| Performance Specifications | {"Working Pressure":"5000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Burst Pressure":"20000 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Tube Bore x Male Flare-O |
| Technical Series Configuration | SAE J514 Tube Bore x Male Flare O-Ring Tube Connector |
| Side 1 Connection Type | Bore |
| Side 2 Connection Type | Male Flare-O |
| Shape | Straight |
| Product Type | Fittings |
