Attributes
| Part Number | 0306-04-B |
|---|---|
| Is Series Page | 0 |
Description

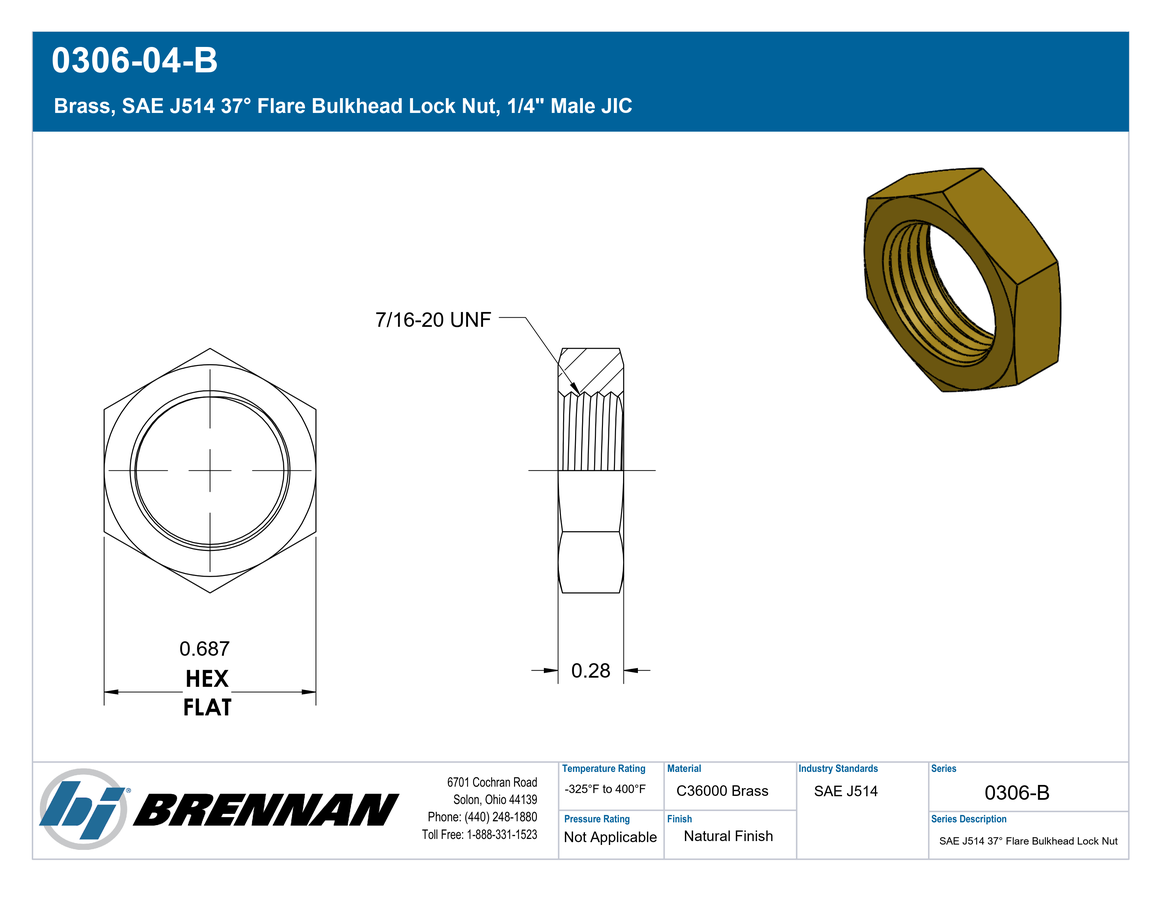

Brass, SAE J514 37° Flare Bulkhead Lock Nut, 1/4" Male JIC
Specifications
| Connection Details | {"Connection Type":"JIC Locknut","Tube OD":"1/4\"","Thread Type":"7/16-20 UNF","Standard":"SAE J514","Connection Standard":"SAE J514","Role":"Line Connection","Connection Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Nut","Shape Type":"Lock Nut","Primary Material":"Brass","Material Grade":"C36000","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Weight":"0.02 lb"} |
| Performance Specifications | {"Temperature Range":"-325°F to 400°F"} |
| Cross References | {"Aeroquip Part Number":"210212-4B","Parker Hose Part Number":"53-4N-B","Parker TFD Part Number":"4 WLN-B","SAE J514 Part Number":"SAE J514 4 070118B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | JIC Bulkhead Lock Nut |
| Technical Series Configuration | SAE J514 Female UN/UNF Bulkhead Lock Nut |
| Side 1 Connection Type | JIC Locknut |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
