Attributes
| Part Number | 5603-04-04-04-B |
|---|---|
| Is Series Page | 0 |
Description

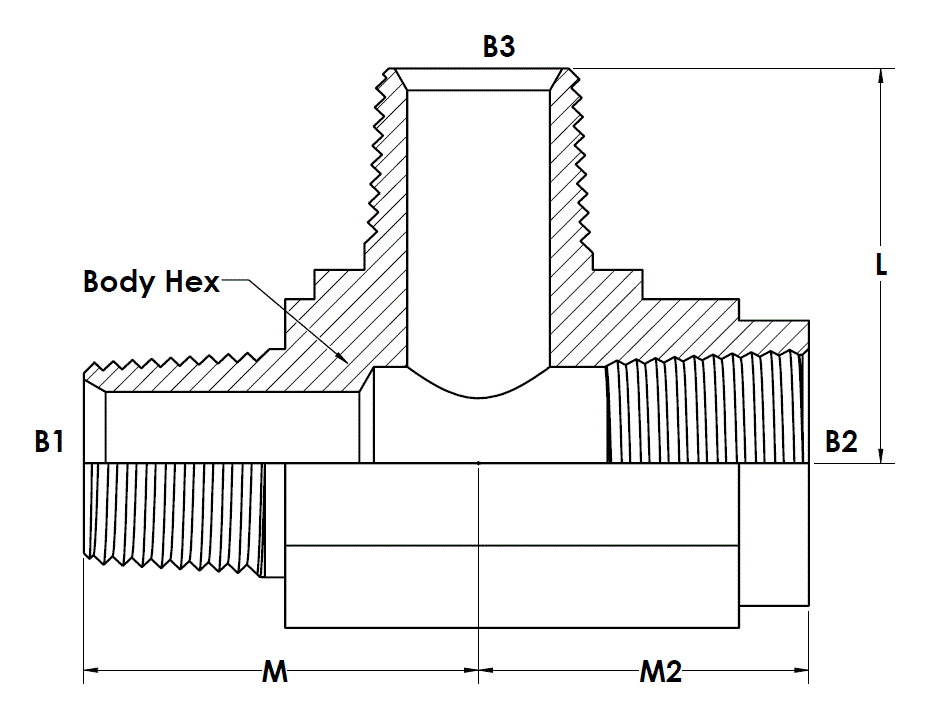

Brass, SAE J514 Pipe Female Run Tee, 1/4" Male NPTF 30° x 1/4" Female NPTF x 1/4" Male NPTF 30°
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"1/4\"","Side 1 Thread Type":"1/4-18 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"1/4\"","Side 2 Thread Type":"1/4-18 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection","Side 3 Connection Type":"Male NPTF 30°","Side 3 Pipe Size":"1/4\"","Side 3 Thread Type":"1/4-18 NPTF","Side 3 Standard":"SAE J476","Side 3 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Female Run Tee","Primary Material":"Brass","Material Grade":"CA377","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Weight":"0.20 lb"} |
| Performance Specifications | {"Working Pressure":"3200 psi","Temperature Range":"-325°F to 400°F","Burst Pressure":"12800 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male Pipe x Female Pipe x Male Pipe |
| Technical Series Configuration | SAE J476 Male NPTF x Female NPTF x Male NPTF Run Tee |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Female NPTF |
| Shape | Tee |
| Product Type | Fittings |
