Attributes
| Part Number | 7033-04-04-B |
|---|---|
| Is Series Page | 0 |
Description

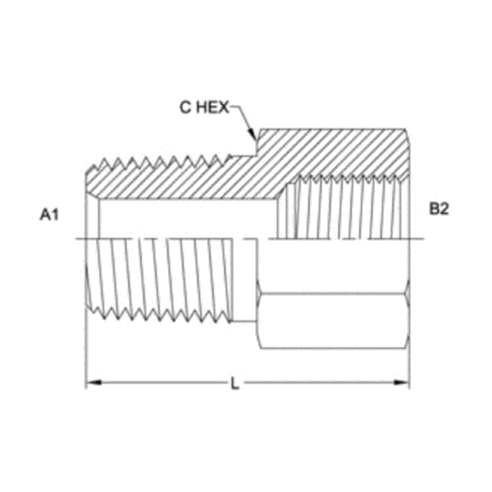

Brass, SAE J476 Pipe Female BSPP Port Adapter, 1/4" Male NPTF 30° x 1/4-19 Female BSPP
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"1/4\"","Side 1 Thread Type":"1/4-18 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Female BSPP","Side 2 Thread Type":"G - 1/4-19","Side 2 Standard":"ISO 1179","Side 2 Role":"Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Brass","Material Grade":"C36000, CA37000, CA34500","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Hex/Wrench":"0.748","Weight":"0.10 lb"} |
| Performance Specifications | {"Working Pressure":"3300 psi","Temperature Range":"-325°F to 400°F","Burst Pressure":"13200 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"1/4X1/4FHG4B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male Pipe x Female BSPP |
| Technical Series Configuration | SAE J476 Male NPTF Pipe x ISO 1179 Female BSPP Port Adapter |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Female BSPP |
| Shape | Straight |
| Product Type | Fittings |
