Attributes
| Part Number | 2651-12-12-12-12-FG |
|---|---|
| Is Series Page | 0 |
Description

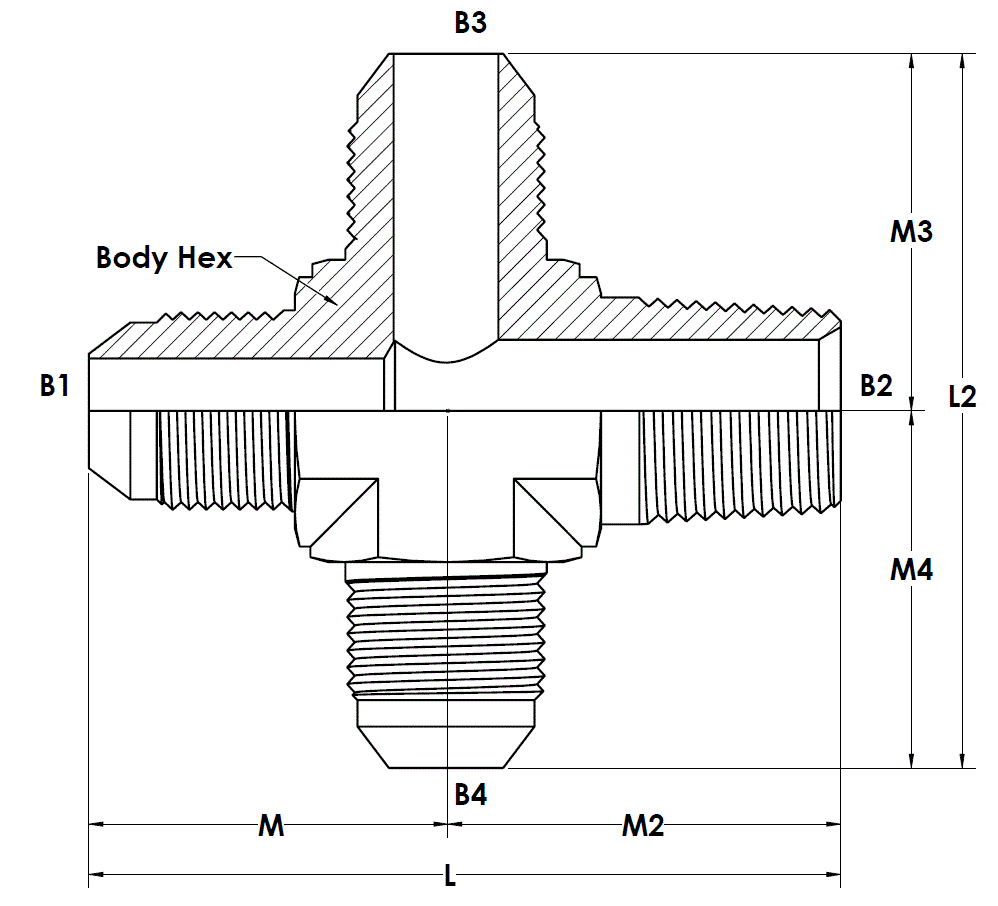

Steel, SAE J514 37° Flare Male Pipe Cross, 3/4" Male JIC x 3/4" Male NPTF 30°
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-1/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"3/4\"","Side 2 Thread Type":"3/4-14 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection","Side 3 Connection Type":"Male JIC","Side 3 Tube OD":"3/4\"","Side 3 Thread Type":"1-1/16-12 UN","Side 3 Standard":"SAE J514 - Class 2A Thread","Side 3 Role":"Line/Tube Connection","Side 4 Connection Type":"Male JIC","Side 4 Tube OD":"3/4\"","Side 4 Thread Type":"1-1/16-12 UN","Side 4 Standard":"SAE J514 - Class 2A Thread","Side 4 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Cross","Shape Type":"Male Cross","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.72 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"202003-12-12S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male Pipe x Male JIC x Male JIC |
| Technical Series Configuration | SAE J514 Male JIC Tube x SAE J476 Male NPTF x Male JIC Tube x Male JIC Tube Cross |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male NPTF 30° |
| Shape | Cross |
| Product Type | Fittings |
