Attributes
| Part Number | 7005-04-L10-16 |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 37° Flare DIN 2353 (Light) Tube Adapter Body Only, 1/4" Male JIC x M16X1.5 Male DIN
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M16X1.5","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"0.669","Weight":"0.06 lb"} |
| Performance Specifications | {"Working Pressure":"5800 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"23200 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"15.063-10-4"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Male Metric Light Series DIN Compression |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 8434-1 Light Series Male Metric Line Adapter |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male DIN |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

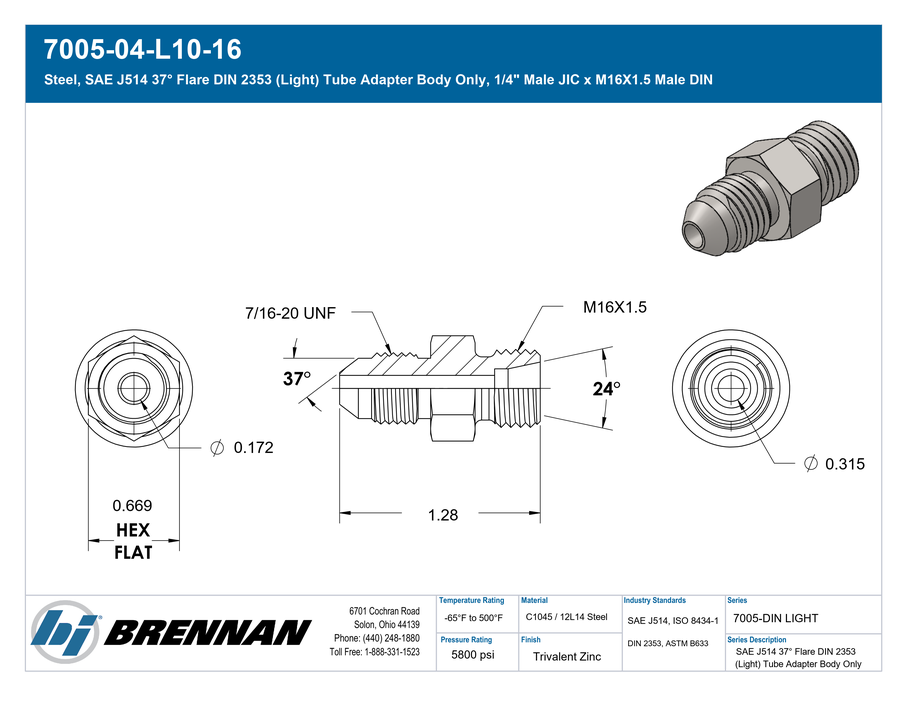

Specification Sheet
Open PDF
